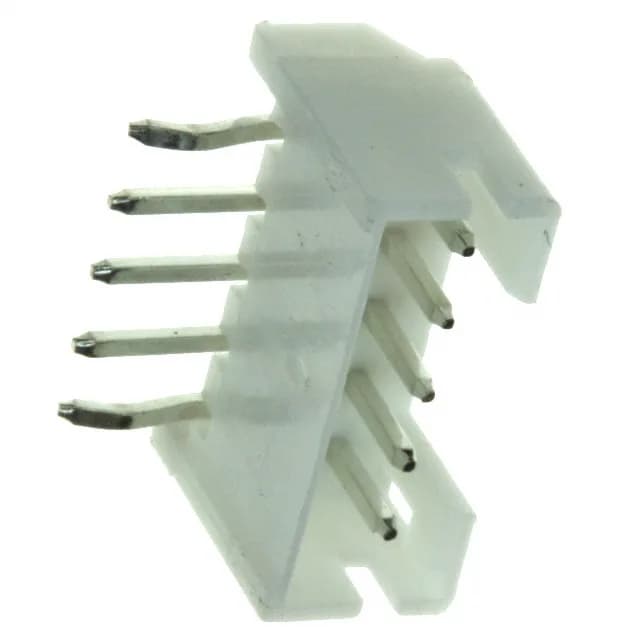

TE Connectivity AMP Connectors High Performance Interconnect (HPI) series header, 5 positions, 2.00 mm pitch, right-angle through-hole, shrouded 3-wall, press-fit or solder termination, rated 3 A at 250 V.
| Parameter | Value |
|---|---|
| Series | High Performance Interconnect (HPI) |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 250V |
| Current rating | 3A |
| Operating temperature | -25°C ~ 85°C |
| Contact material | Brass |
| Insulation color | Natural |
| Insulation height | 0.195\" (4.95mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 3 Wall |
| Termination | Press-Fit, Solder |
| Applications | Automotive, General Purpose, Industrial, Medical |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.134\" (3.40mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.138\" (3.50mm) |
| Contact finish thickness - post | 80.0µin (2.03µm) |
| Contact finish thickness - mating | 80.0µin (2.03µm) |
The 440055-5 is a 5-position, single-row, right-angle header from TE's High Performance Interconnect (HPI) series.
The same header can be wave-soldered if the assembly line is set up for through-hole soldering. The contact length after post is 0.134" (3.40 mm), which fits standard 1.6 mm PCBs.
This header is the board-side half of a wire-to-board system.
Yes, the 440055-5 is ROHS3 compliant per the manufacturer's listing.
