TE Connectivity AMP Connectors 440146-9 — Connector Housings

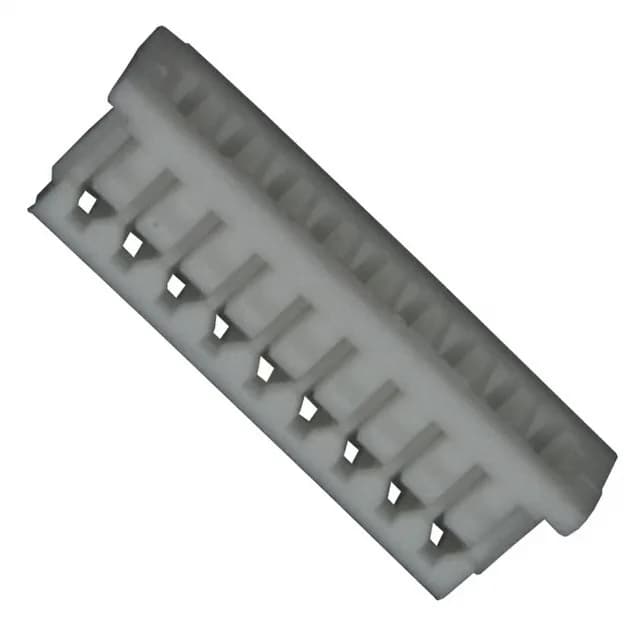

TE 440146-9 HPI Receptacle Housing, 9 Pos, 1.25mm Pitch

MPN440146-9
Active

TE Connectivity High Performance Interconnect (HPI) receptacle housing, 9 positions, 1.25mm pitch, single row, natural thermoplastic, free hanging, crimp termination, contacts not included.

$0.1900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 440146-9 datasheet (PDF)
RoHSRoHS Compliant
SeriesHigh Performance Interconnect (HPI)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

440146-9 specifications
ParameterValue
SeriesHigh Performance Interconnect (HPI)
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Operating temperature-25°C ~ 85°C
ColorNatural
Insulation materialThermoplastic
NoteContacts Not Included
Pitch0.049\" (1.25mm)
PackageBulk
Rows1
Contact terminationCrimp
Positions9

Product details

The TE Connectivity 440146-9 is a 9-position receptacle housing from the High Performance Interconnect (HPI) series. It uses a 1.25 mm pitch — the tightest in the HPI lineup among the listed peers — which keeps the wire-to-board interface compact for dense harness layouts. The housing is natural thermoplastic, free-hanging (in-line), and accepts female socket contacts via crimp termination.

The One Spec That Trips Up Buyers: Contacts Not Included

The housing ships empty — the note on the line reads Contacts Not Included. You must order the matching crimp socket terminals separately.

Frequently asked questions

Does 440146-9 include contacts?

No. The housing ships without contacts — the note on the line states Contacts Not Included. You must order the matching crimp socket terminals separately.

What is the pitch of 440146-9?

The pitch is 0.049" (1.25 mm), which is the tightest among the HPI series peers listed.
