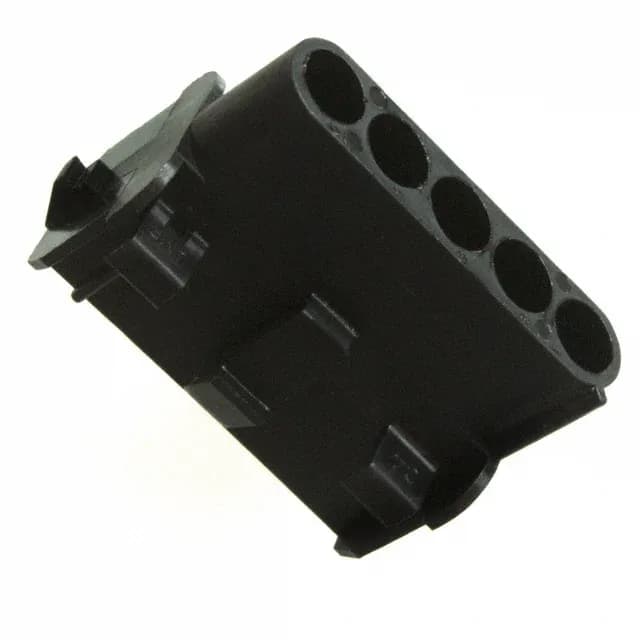

It accepts either male or female crimp contacts, so the same housing body can serve as the receptacle half on either side of a mated pair — the contact type you load determines the gender.
The locking ramp fastening gives an audible click when the housing fully seats against its mating plug — no secondary latch or screw lock to fiddle with. That click is your confirmation the pair is locked against vibration loosening. The panel mount snap-in feature lets you push the housing into a rectangular cutout from the wire side; it locks in place without hardware, which speeds up harness assembly on a production line.
Contacts Are Ordered Separately — Don't Forget Them
The housing alone cannot carry current.
Temperature Range and Material — Where This Housing Works
That spans cold-soak automotive underhood conditions through hot industrial cabinet interiors. RoHS compliance is confirmed on the listing.
How the Black 480764-9 Compares to the White 1379217-6
The 1379217-6 is the same 5-position Universal MATE-N-LOK receptacle housing with the same locking ramp, single-row layout, and panel snap-in mount — but in white instead of black. Both are active, both require separately ordered contacts. If your harness uses color coding to distinguish harness branches (black for power, white for signal, for example), the 1379217-6 is a direct functional swap. No other spec difference between them.
