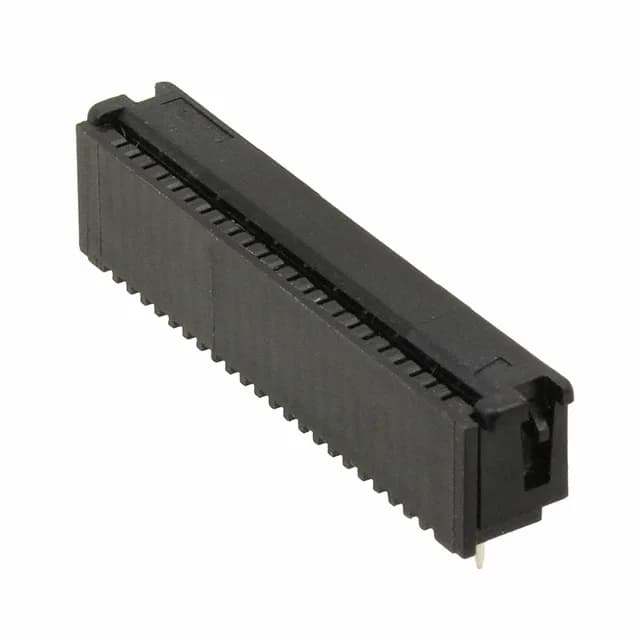

TE Connectivity AMP Connectors 487925-8
MPN487925-8
Active
$0.7195Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Mounting | Through Hole |
| Cable end type | Straight |
| Flat flex type | FFC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Housing color | Black |
| Actuator color | Black |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Actuator material | Thermoplastic |
| Height above board | 0.310\" (7.87mm) |
| Pitch | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Tube |
| Features | Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Tin |
| Locking feature | Slide Lock |
| FFC, FCB thickness | 0.12mm |
| Positions | 11 |
| Contact finish thickness | 150.0µin (3.81µm) |
