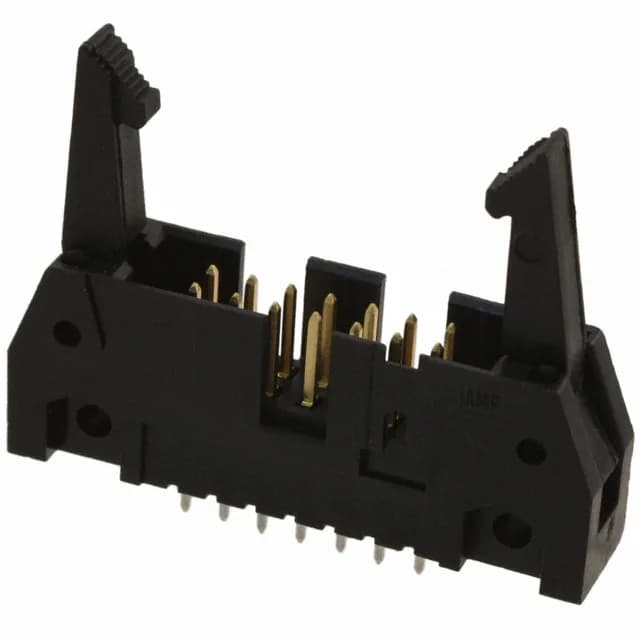

TE Connectivity AMP-Latch header, order code 499206-2, 14 positions, dual row, 0.100" (2.54mm) pitch, 1A, 250VAC, male pin, shrouded - 4 wall, through hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A |
| Operating temperature | -65°C~105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 499206-2 is the 14-circuit member of the TE AMP-Latch shrouded header line, designed for board-to-cable/wire interconnect. Rated 1A per contact at 250VAC, the header uses gold or gold-palladium mating contacts and mounts through hole with solder termination.
The 4-wall shrouded housing includes a keying slot and mounting flange, with long latch lock/eject hooks for secure mating. Black UL94 V-0 rated insulation.
