AMP-Latch 26-Position Header
The 499206-6 is the 26-circuit member of TE Connectivity's AMP-Latch shrouded header line, designed for board-to-cable/wire interconnect. The 4-wall shrouding with latch lock/eject hooks provides keying and retention.

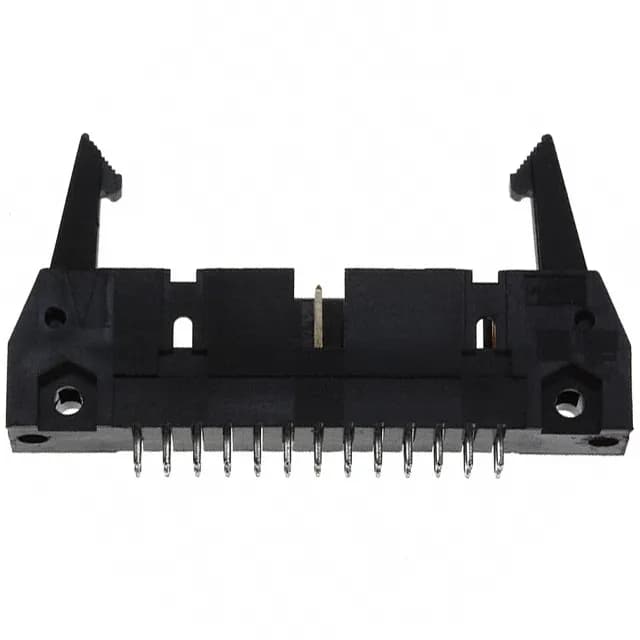

TE 499206-6 AMP-Latch Header, 26 Pos, 0.100" Pitch
MPN499206-6
Active
TE Connectivity AMP-Latch header, order code 499206-6, 26 positions, dual row, 0.100" (2.54 mm) pitch, 1 A, 250 VAC, through hole, shrouded - 4 wall, gold or gold-palladium mating contacts, solder termination.
$4.8502Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Long |
| Voltage rating | 250VAC |
| Current rating | 1A |
| Operating temperature | -65°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Tray |
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
