TE Connectivity AMP Connectors 499582-3 — Pin Headers

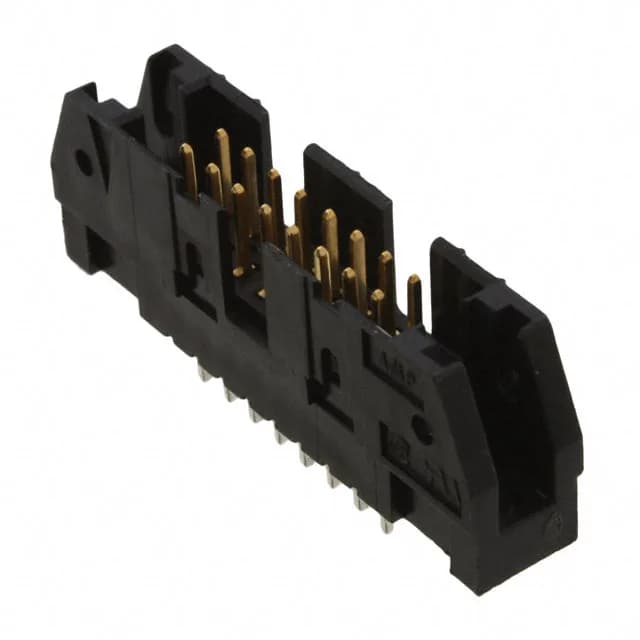

499582-3 TE AMP-Latch Header, 16 Pos, 2.54mm, Shrouded

MPN499582-3
Active

TE Connectivity AMP-Latch series header, 499582-3, 16-position dual-row, 0.100" (2.54mm) pitch, shrouded 4-wall, male pin, through-hole press-fit/solder termination, gold or gold-palladium mating finish, rated 1A per contact at 250VAC.

$1.5800Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

499582-3 key specifications
ParameterValue
SeriesAMP-Latch
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Voltage rating250VAC
Current rating1A per Contact
Operating temperature-65°C ~ 105°C
Insulation colorBlack
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk

All specifications

499582-3 additional specifications
ParameterValue
FeaturesKeying Slot, Mounting Flange
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin-Lead
Contact length - post0.174\" (4.42mm)
Contact finish - matingGold or Gold-Palladium
Contact length - mating0.201\" (5.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 499582-3: Termination is press-fit and solder — the press-fit section holds the pin in the plated through-hole before wave soldering, reducing the risk of lifted pads during assembly. The contact length on the post side is 0.174" (4.42mm), which fits standard 1.6mm-thick PCBs with enough tail protrusion for a reliable solder fillet. For RoHS compliance, verify the specific production date code — the listed finish is tin-lead, which may not meet current RoHS exemptions without documentation.

Sourced through independent distribution channels against an RFQ.

Environmental and Compliance Ratings

Frequently asked questions

Does 499582-3 have a keying slot?

Yes, the header includes a keying slot as a standard feature, which prevents mating with non-keyed receptacles and reduces mis-mating risk during assembly.
