34-Position AMP-Latch Header — Board-to-Wire Fit

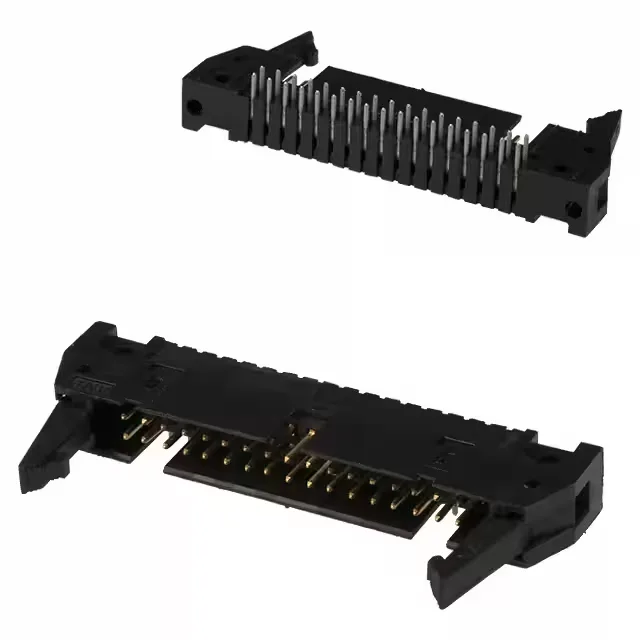

The 499786-8: The header is through-hole, right-angle mounted, with a full 4-wall shroud and long latch lock/eject hooks. The 15 µinch gold or gold-palladium mating finish supports repeated mating cycles — suitable for equipment where the cable is disconnected during service or reconfiguration.
This header mates with AMP-Latch socket housings that accept the standard AMP-Latch crimp or IDC terminals. The keying slot and mounting flange on the header ensure correct orientation and mechanical retention to the board. The long eject hooks clear the socket body during engagement and provide the leverage needed to separate a fully populated 34-position cable assembly.
The base product number is 499786; the -8 suffix denotes the 34-position, right-angle, through-hole variant with long eject hooks and gold mating finish. Bulk packaging is standard.
