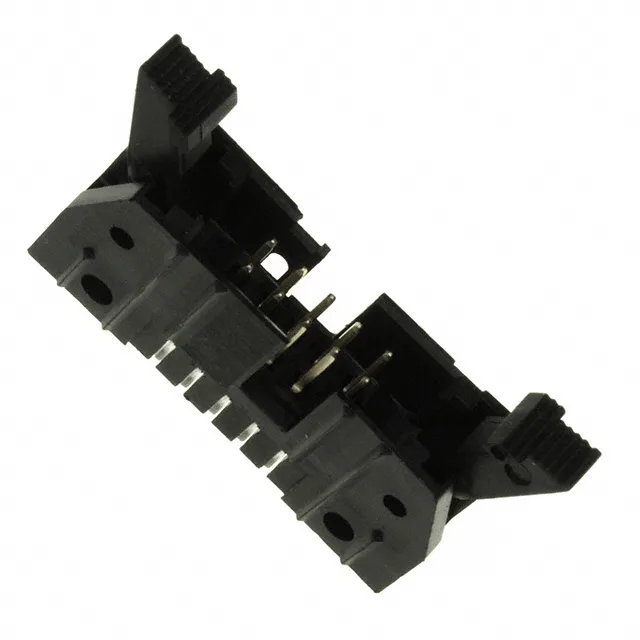

TE Connectivity AMP-Latch shrouded header, 499910-1, 10 circuits dual-row, 0.100" pitch, male pin, through-hole solder, latch lock/eject hooks, 1 A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 499910-1: The latch lock/eject hooks secure the mating half and provide a positive retention under vibration — the short hooks clear the cable strain relief on the receptacle side. The tin-lead post finish (100.0 µinch) is compatible with standard wave-solder profiles.
This header mates with AMP-Latch receptacles. The keying slot and mounting flange prevent mis-mating and provide mechanical alignment during board assembly.
The contact finish on the post is tin-lead, which contains lead and is not RoHS compliant for most applications. Verify your exemption or consider a RoHS-compliant variant from the 499910 series.
Sourced to order against your BOM quantity. Availability and current pricing confirmed at quote time.
