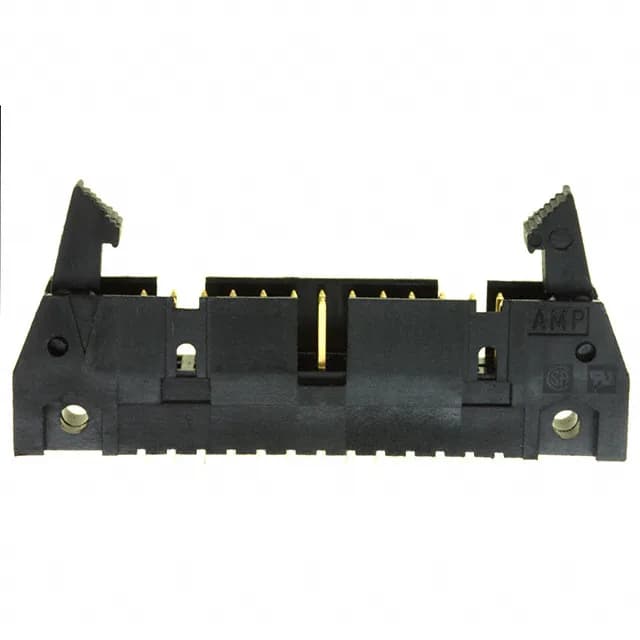

TE Connectivity AMP-Latch 499910-6, 26-position dual-row header, 0.100" (2.54mm) pitch, shrouded 4-wall, latch lock/eject hooks, through-hole solder termination, black UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Current rating | 1A |
| Operating temperature | -55°C ~ 105°C |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Features | Keying Slot, Mounting Flange |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin-Lead |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.639\" (16.23mm) |
| Contact finish - mating | Gold or Gold-Palladium |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The latch lock/eject hooks provide positive retention against vibration-induced disconnect.
Current rating is 1A per contact, typical for signal-level interconnects in this pitch class. The 0.110" (2.79mm) post length suits typical 1.6mm PCB thicknesses.
No, the 499910-6 is listed as Active with no end-of-life notice.
