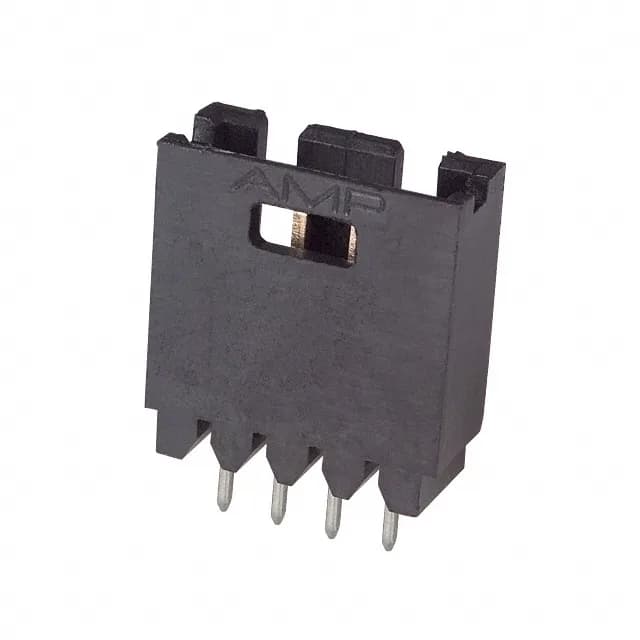

TE Connectivity AMPMODU Mod II, 5-102202-1, Board to Board or Cable, Header, Male Pin, 4 Positions, 0.100" (2.54mm) Pitch, Shrouded - 4 Wall, Through Hole, Solder, 3A, Gold Mating, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 5-102202-1 is a 4-position, single-row header on a 0.100" (2.54mm) pitch — the standard spacing that matches most ribbon cable IDC connectors and legacy through-hole footprints.
Brass pins with gold mating and tin post. RoHS compliant.
Yes, the 5-102202-1 is a shrouded - 4 wall header. The four-sided shroud protects the male pins and guides the mating receptacle into alignment, reducing the risk of bent pins during assembly or field service.
The mating pitch is 0.100" (2.54mm), the standard 0.100-inch grid that matches common ribbon cable IDC connectors and through-hole footprints.
