TE Connectivity AMP Connectors 5-102202-3 — Pin Headers

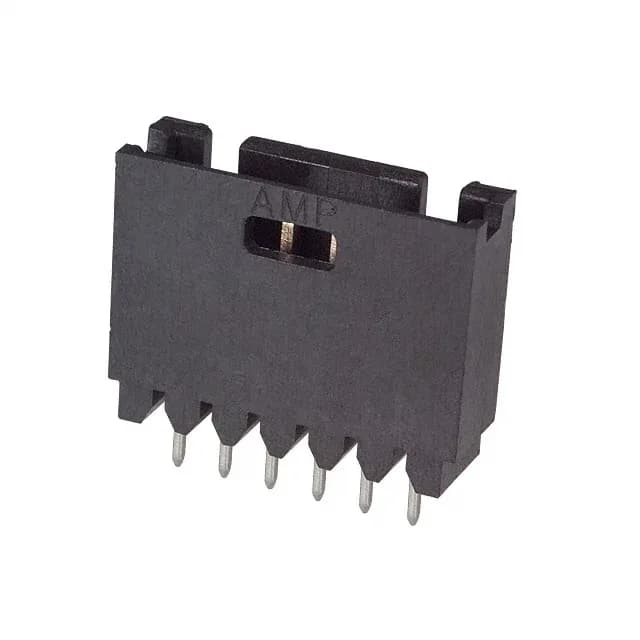

5-102202-3 TE Connectivity AMP Connectors 6-Pin Header

MPN5-102202-3
Active

TE Connectivity AMP Connectors AMPMODU Mod II, Header, Shrouded – 4 Wall, Through Hole, Solder, 6 Positions, 0.100" (2.54mm) Pitch, Gold Mating Finish, 3 A, -65°C ~ 105°C, UL94 V-0

$2.5100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-102202-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5-102202-3 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.549\" (13.94mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-102202-3 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions6
Contact finish - postTin
Contact length - post0.130\" (3.30mm)
Overall contact length0.589\" (14.96mm)
Contact finish - matingGold
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

6-Pin 2.54mm Pitch Shrouded Header – AMPMODU Mod II

Rated 3 A per contact, with gold plating on the mating surface (15.0 µin) and tin on the solder tails (100.0 µin). The header is through-hole mounted, with a 0.130" (3.30mm) post length for standard PCB thickness. Overall contact length is 0.589" (14.96mm); the mating pin length is 0.240" (6.10mm), which engages fully with the receptacle before the latch clicks.

This header mates with standard AMPMODU Mod II receptacles (e.g., 104257-5 series) that accept 22-30 AWG wire with the matching crimp terminal.

Frequently asked questions

Is 5-102202-3 RoHS compliant?

Yes, the 5-102202-3 is ROHS3 compliant.

What is the pitch and position count of 5-102202-3?

0.100" (2.54mm) pitch, 6 positions, single row, all positions loaded.

Is 5-102202-3 shrouded or unshrouded?

Shrouded – 4-wall. The full shroud protects the pins and guides the mating receptacle.
