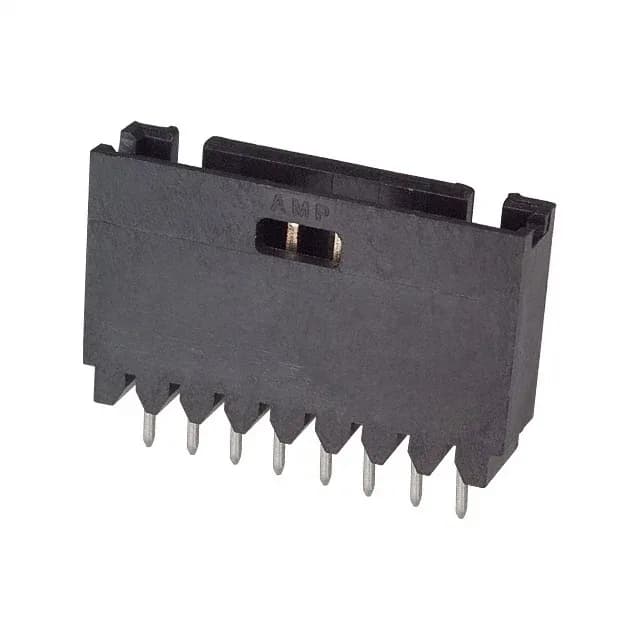

TE Connectivity AMP Connectors AMPMODU Mod II header, 5-102202-5, 8 positions, 0.100" (2.54mm) pitch, through-hole, shrouded 4-wall, gold mating finish, 3 A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 5-102202-5: This is an 8-position, single-row, shrouded header from the AMPMODU Mod II series. Style is board-to-board or cable, so it mates with a matching receptacle or IDC connector. The 4-wall shroud protects the male pins during handling and guides the mating half into alignment. Tin on the solder tails keeps the board-side cost down.
Confirm the mating half's orientation and locking feature to match your assembly.
