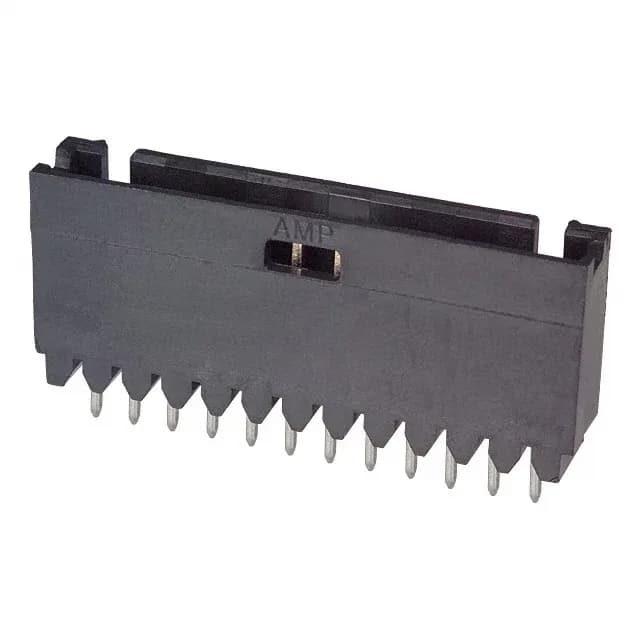

TE Connectivity AMP Connectors AMPMODU Mod II header, order code 5-102202-9, 12 positions, single row, 2.54 mm pitch, 3 A, gold-plated mating contacts, through-hole, solder termination.
5-102202-9 TE AMPMODU Mod II Header, 12 Pos 2.54mm
MPN5-102202-9
Active
TE Connectivity AMP Connectors AMPMODU Mod II header, order code 5-102202-9, 12 positions, single row, 2.54 mm pitch, 3 A, gold-plated mating contacts, through-hole, solder termination.
$2.3048Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 5-102202-9 in the AMPMODU Mod II family?
The AMPMODU Mod II series includes multiple single-row shrouded headers at the same 2.54 mm pitch. No direct pin-compatible substitute is listed for this exact 12-position variant.
