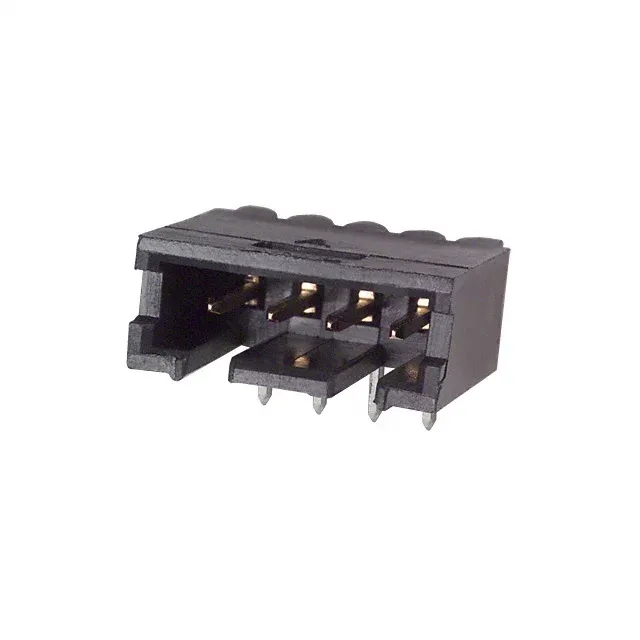

Right-angle shrouded header for board-edge routing
The 0.100" pitch sets the board footprint — a standard grid that matches common prototyping boards and many AMPMODU Mod II receptacles. The contact length on the mating side is 0.240" (6.10mm), and the post length is 0.110" (2.79mm), which defines the solder tail depth through the board. Insulation height is 0.214" (5.44mm) above the board surface, giving the designer a z-height budget for mating with a receptacle and cable assembly.
The part ships in tube packaging.
The 5-102203-1 uses gold on the mating face (15.0µin) and has a push-pull retention — a better choice for applications needing higher mating cycle life and where a latch is not required.
