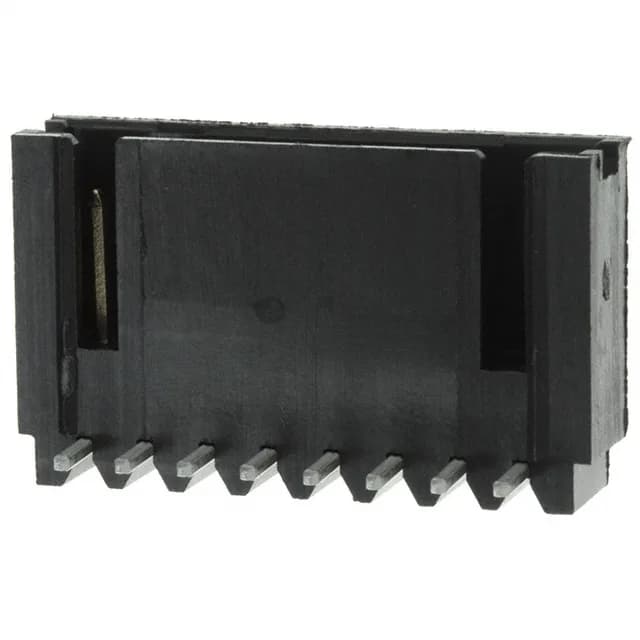

TE Connectivity AMPMODU Mod II header, order code 5-102203-5, 8 positions, single row, 2.54 mm pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
TE 5-102203-5 Header, 8 Pos 2.54mm, AMPMODU Mod II
MPN5-102203-5
Active
TE Connectivity AMPMODU Mod II header, order code 5-102203-5, 8 positions, single row, 2.54 mm pitch, 3 A, gold-plated mating contacts, through-hole right-angle, solder termination.
$3.7600Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What compliance documentation is available for 5-102203-5?
The header carries a UL 94 V-0 flammability rating for the thermoplastic housing. RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors.
