TE Connectivity AMP Connectors AMPMODU Mod II, 10-position single-row shrouded header, 0.100" (2.54 mm) pitch, right-angle through-hole, gold-plated mating contacts, rated 3 A.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |

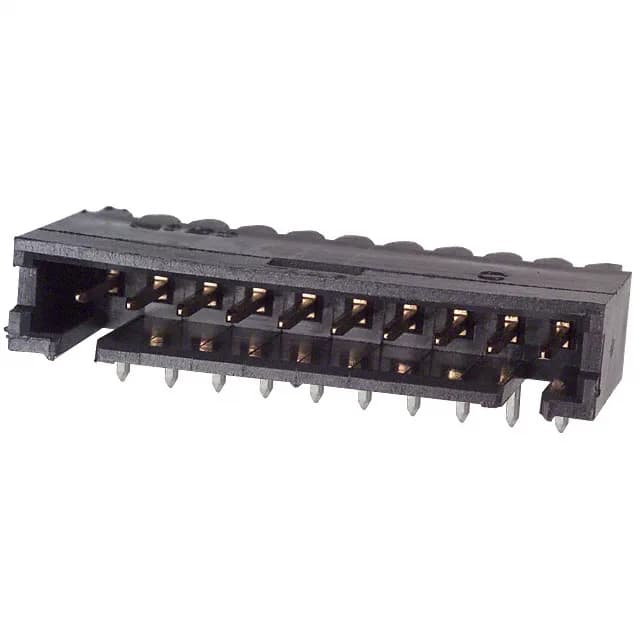

The 5-102203-7: This is a 10-position, single-row, shrouded header from the TE AMPMODU Mod II series. The right-angle through-hole termination routes the header parallel to the board surface, saving vertical clearance in compact enclosures or mezzanine stacks.
The 0.110" post length is specified for through-hole solder termination.
RoHS compliant per the current directive.
The style is Board to Board or Cable, meaning it can mate with a receptacle on another PCB or with a cable-mounted housing using the same 0.100" pitch.
