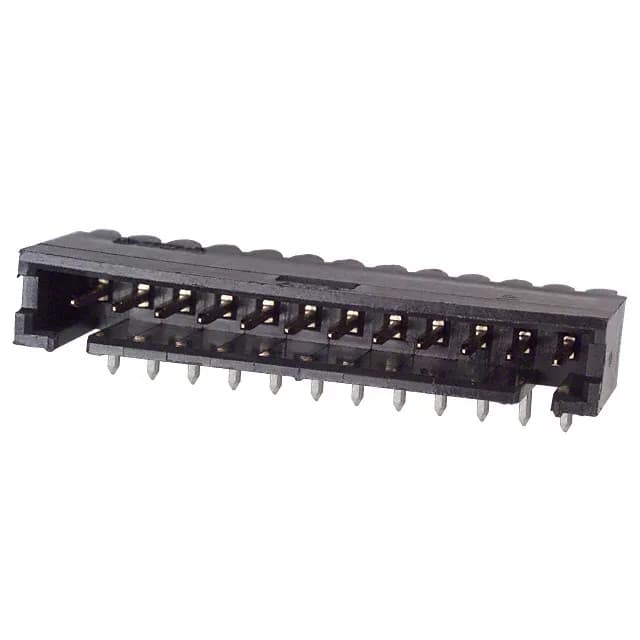

TE Connectivity AMPMODU Mod II shrouded header, 5-102203-9, 12 positions, 0.100" (2.54mm) pitch, single row, right-angle through-hole, 3A, gold-plated male pins, UL94 V-0 black thermoplastic.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Mates with any standard AMPMODU Mod II 0.100" pitch receptacle — look for a 12-position, single-row, female housing with 0.025" square post receptacles. The push-pull fastening means no latch; the shroud provides polarization. Termination is solder — the 0.110" (2.79mm) post length suits standard through-hole PCB thickness.
Yes, 5-102203-9 is ROHS3 compliant.
Rated 3 A per contact.
