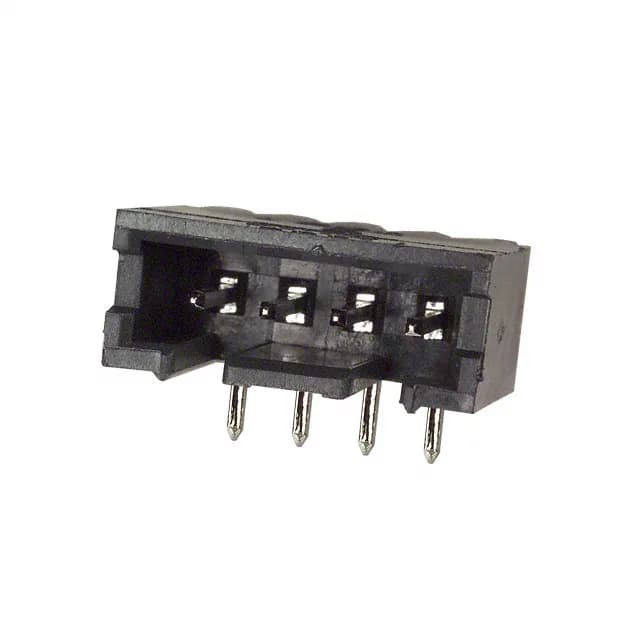

5-102523-1 TE Connectivity AMP Connectors Header R/A 4POS

MPN5-102523-1
Active

TE Connectivity AMP Connectors AMPMODU Mod II, 5-102523-1, Header, Male Pin, 4 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Tin Plating, Shrouded - 4 Wall, UL94 V-0, Active

$1.4900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5-102523-1 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.214\" (5.44mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-102523-1 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTube
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions4
Contact finish - postTin
Contact length - post0.110\" (2.79mm)
Contact finish - matingTin
Contact length - mating0.240\" (6.10mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

Right-angle 4-position header at 0.100-inch pitch

The 5-102523-1: This is a 4-position, single-row, right-angle through-hole header from the AMPMODU Mod II series, with a 0.100-inch (2.54 mm) mating pitch. For applications with vibration or cable strain, consider a version with a latch holder or board lock.

Tin plating and UL94 V-0 housing

RoHS compliant per the current lifecycle record.

Both use tin-plated contacts, but 1394090-1 adds a locking mechanism and carries a thinner 39.4 µinch plating on the mating surface. If your BOM calls for 4 positions and the push-pull retention works, 5-102523-1 is the direct fit; if you need 6 positions or a latch, the 1394090-1 is the alternative.

Frequently asked questions

What is the mating pin length of 5-102523-1?

The contact length on the mating side is 0.240 inches (6.10 mm). The post length for the through-hole solder tail is 0.110 inches (2.79 mm).

Is 5-102523-1 shrouded or unshrouded?

It is shrouded with a 4-wall design — the plastic shroud surrounds the male pins on all four sides, providing pin protection and mating alignment.

What is the replacement or equivalent for 5-102523-1?

No direct replacement is listed by the manufacturer. The closest functional alternative in the same form factor is 1394090-1, but note it has 6 positions and a 0.112-inch pitch — verify your board footprint and position count before substituting.
