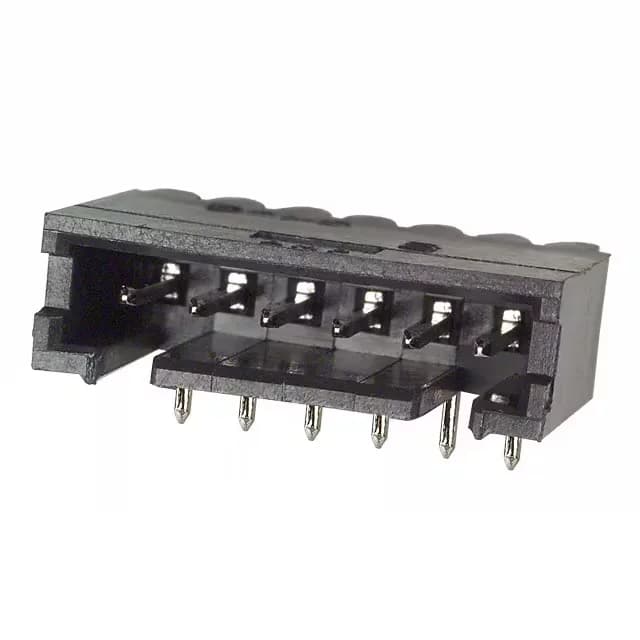

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 6 Positions, 0.100" (2.54mm) Pitch, Through Hole, Right Angle, Tin Contact Finish, 3A Current Rating
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 5-102523-4: Mating contact length is 0.240" (6.10mm), and the post length for soldering is 0.110" (2.79mm).
The thermoplastic insulation material supports this range without degradation.
The closest functional peer is 1394090-1, also a 6-position, single-row, right-angle, shrouded header. The latch holder adds vibration resistance but the wider pitch changes the board footprint.
The push-pull fastening means the receptacle should have a corresponding friction-lock or unlatched design.
Yes, it is ROHS3 compliant.
