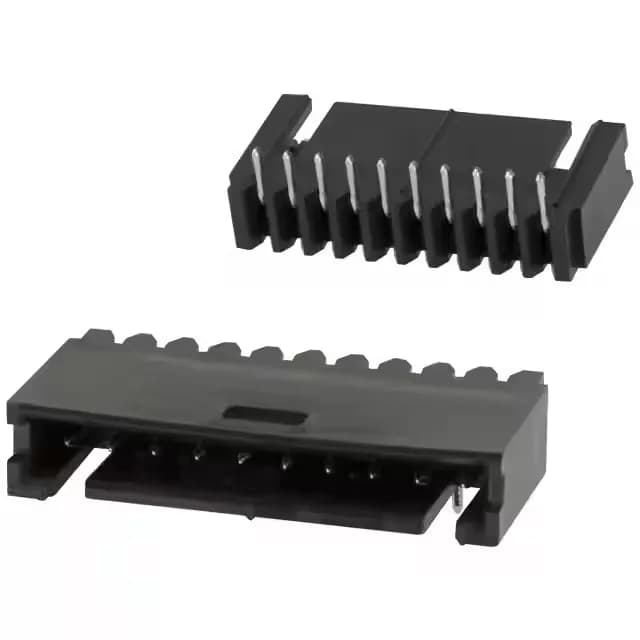

TE Connectivity AMP Connectors AMPMODU Mod II pin header, 5-102523-8, 10 positions, 0.100" (2.54mm) pitch, right-angle through-hole, shrouded 4-wall, tin-plated male pins, rated 3A per contact, -65°C to 105°C, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 5-102523-8 is a 10-position, single-row, right-angle pin header from the AMPMODU Mod II series.
Sourced through independent distribution channels. No stock-holding claim; quoted to order per RFQ.
The insulation height of 0.214" (5.44mm) gives clearance for the receptacle housing to seat fully. Thermoplastic housing rated UL94 V-0 for flame resistance inside equipment enclosures.
5-102523-8 is available through independent distribution. No stock-holding claim; sourced per order.
Yes, the part is listed as RoHS Compliant.
The mating pitch is 0.100" (2.54mm), single-row, 10 positions.
