Right-angle 14-position header for board-to-board or cable

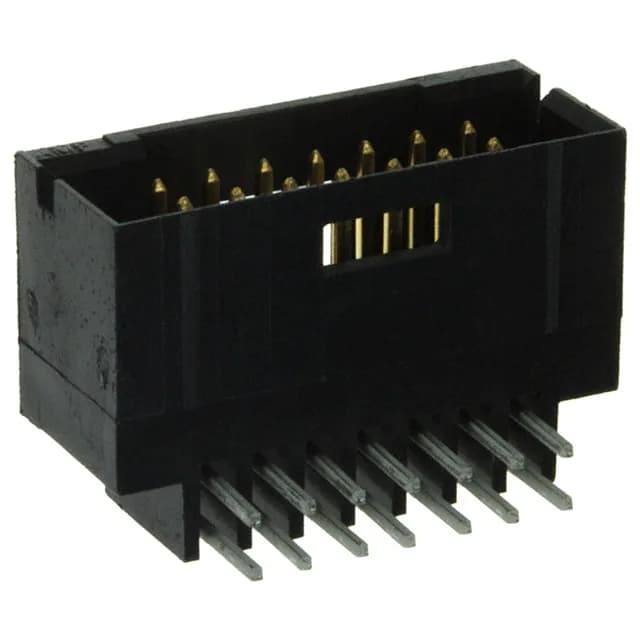

The 5-102570-5: This 14-position, 2-row header sits on a 0.100-inch (2.54mm) pitch with the same row spacing, making it a direct fit for standard 0.100-inch IDC ribbon cable or a matching board-to-board receptacle. Rated 3A per contact, with a gold mating finish (15.0µin) over phosphor bronze contacts — the gold layer handles repeated mating cycles without fretting corrosion, so this header suits field-serviceable connections where the cable is disconnected occasionally.
Shrouded 4-wall housing with detent lock
The housing material is rated UL94 V-0 for flammability, and the operating temperature range spans -65°C to 105°C, covering most industrial and telecom environments.
