The 5-102570-6: Mating contacts are finished with 15 µinch gold over phosphor bronze – rated for moderate reconnect duty in controlled environments. The solder posts are tin-plated at 100 µinch, which wets well in wave-solder processes and provides a reliable board-level joint.

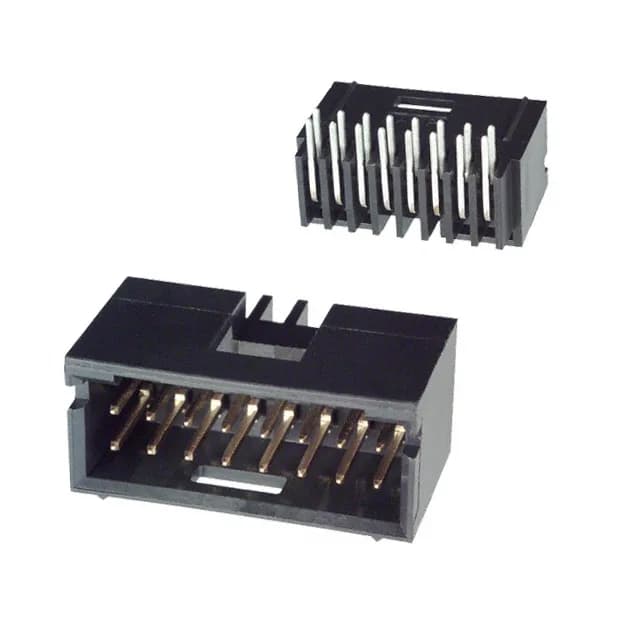

5-102570-6 TE AMPMODU Mod II Header – 16 Pos, 2.54mm, Gold
MPN5-102570-6
Active
TE Connectivity AMPMODU Mod II header, 5-102570-6, 16-position dual-row, 0.100" (2.54mm) pitch, shrouded 4-wall, through-hole right-angle, gold mating finish, 3 A per contact, UL94 V-0.
$1.5900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
Where can I buy 5-102570-6 and how do I get a price?
5-102570-6 is sourced through independent distribution against your RFQ.
What is the mating connector for 5-102570-6?
5-102570-6 mates with a standard AMPMODU Mod II receptacle housing – look for a 16-position, 0.100" pitch, dual-row female connector with crimp or IDC termination.
Is 5-102570-6 RoHS compliant?
RoHS compliance is standard for this series; confirm with the manufacturer's compliance documentation for your specific lot.
