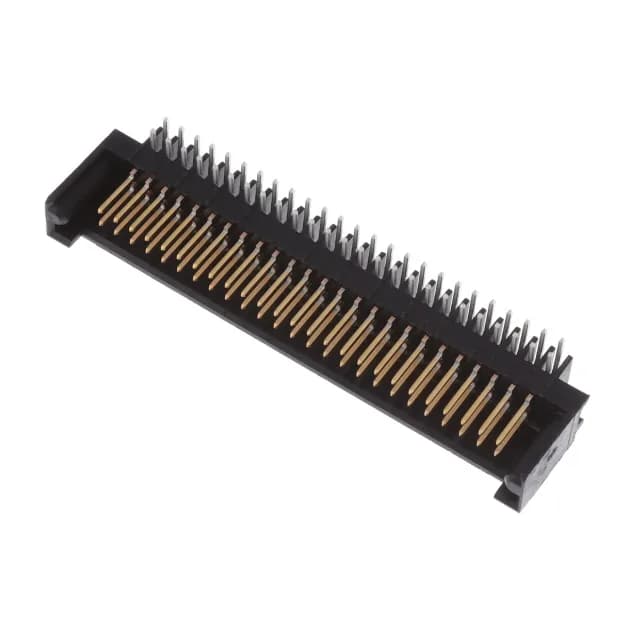

TE Connectivity AMP Connectors AMPMODU Mod II header, 50 positions, 2.54mm pitch, gold mating finish, 3A, right-angle through-hole, shrouded 3-wall, push-pull fastening.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.319\" (8.10mm) |
| Insulation material | Polyester |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 3 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
This header mates with AMPMODU Mod II socket housings and IDC receptacles on the same 0.100" pitch — common mating parts include TE 5-104507-5 (50-position socket) and 1-104507-0 (50-position IDC receptacle).
This header mates with AMPMODU Mod II socket housings and IDC receptacles on 0.100" pitch. Common mating parts include TE 5-104507-5 (50-position socket) and 1-104507-0 (50-position IDC receptacle). Confirm the circuit count and orientation before ordering.
