TE Connectivity AMP Connectors 5-102617-3 — Pin Headers

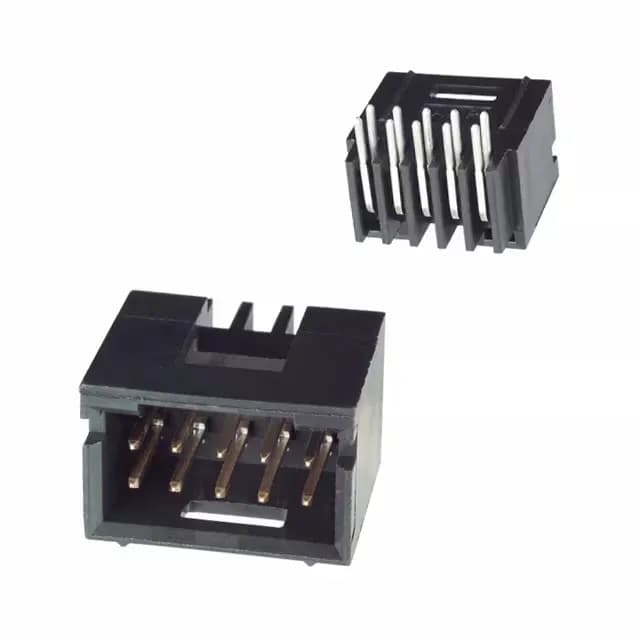

5-102617-3 TE Connectivity AMPMODU Mod II Header, 10 Pos

MPN5-102617-3
Active

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 10 Positions, 2.54mm Pitch, Through Hole Right Angle, Gold Mating Finish, 3A, UL94 V-0

$2.7500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 5-102617-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-102617-3 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-65°C~105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.400\" (10.16mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-102617-3 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

It mates with matching receptacle connectors for board-to-board or cable-to-board interconnects. The UL94 V-0 thermoplastic housing keeps the assembly compliant inside equipment enclosures that require flame-rated materials.

Detent Lock and Shrouded Walls for Vibration Resistance

This is a tight fit for low-profile enclosures where a vertical header would interfere with the lid.

The base product number is 102617 — use this for cross-referencing with TE's documentation and mating connector listings.

Frequently asked questions

What is the mating female connector for 5-102617-3?

The 5-102617-3 mates with AMPMODU Mod II receptacles that have a 2.54 mm pitch and accept 0.025-inch square pins. The base product number 102617 can be used to search TE's mating connector listings.

Is 5-102617-3 RoHS compliant?

Yes, it is ROHS3 compliant.

Where can I buy 5-102617-3?

Sourced to order against your BOM quantity — availability and current pricing confirmed at quote time.
