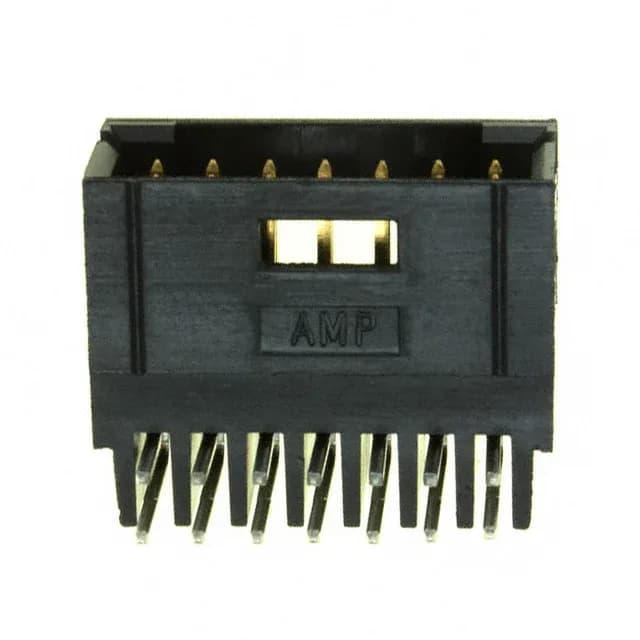

TE Connectivity AMPMODU Mod II, 14-position dual-row shrouded header, 0.100" (2.54 mm) pitch, through-hole right-angle, gold-plated male pins, detent lock, UL94 V-0 black thermoplastic, rated 3 A, -65°C to 105°C.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The UL94 V-0 thermoplastic housing keeps the assembly inside the flammability rating required for equipment enclosures.
The post length is 0.135" (3.43 mm) — enough for a standard 0.062" PCB with through-hole soldering.
ROHS3 compliant, with tin-plated posts and gold-plated mating contacts. No restricted substances under the current exemption list.
Yes, it is ROHS3 compliant. The posts are tin-plated and the mating contacts are gold-plated, both within the current exemption scope.
The detent lock on the header engages the corresponding ramp on the receptacle housing.
Yes — the fastening type is a detent lock, which provides a positive mechanical latch against the mating receptacle.
