TE Connectivity AMP Connectors 5-102617-8 — Pin Headers

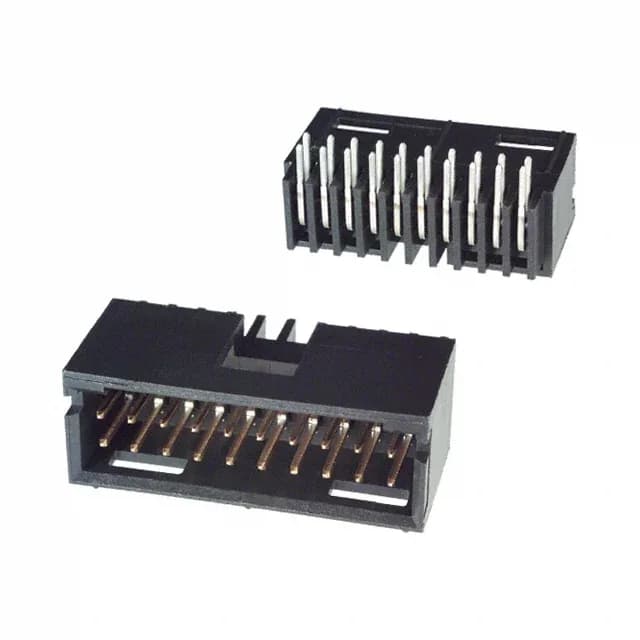

5-102617-8 TE Connectivity AMPMODU Mod II 20-Pin

MPN5-102617-8
Active

TE Connectivity AMPMODU Mod II, 5-102617-8, Board to Board or Cable, Header, Through Hole, Right Angle, 20 Positions, 2.54mm Pitch, Gold Mating, Tin Post, Detent Lock, UL94 V-0

$5.2400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

5-102617-8 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.400\" (10.16mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-102617-8 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

20-Position Right-Angle Header in Active Production

The 5-102617-8 is a 20-position, 2-row, right-angle header from the TE Connectivity AMPMODU Mod II series, with a 0.100-inch (2.54mm) mating pitch and 0.100-inch row spacing.

This header is through-hole, right-angle mounted, with a mating pin length of 0.318 inches (8.08mm) and a post length of 0.135 inches (3.43mm). It mates with standard AMPMODU Mod II receptacles or IDC sockets that accept 0.025-inch square posts on 2.54mm pitch. The insulation height of 0.400 inches (10.16mm) and black thermoplastic housing (UL94 V-0) suit it for board-to-board or cable-to-board applications where space is constrained in the vertical axis.

Frequently asked questions

How can I order 5-102617-8 or check stock?

Submit an RFQ with your target quantity and delivery date. We source this active-production part to order; pricing and lead time are confirmed at quote time.

What is the mating connector for 5-102617-8?

This header mates with AMPMODU Mod II receptacles or IDC sockets that accept 0.025-inch square posts on 0.100-inch (2.54mm) pitch, 2-row, 20 positions. Confirm the mating half's base product number (e.g., 102618 series) matches your assembly.

Is 5-102617-8 RoHS compliant?

Yes, it is listed as RoHS compliant.
