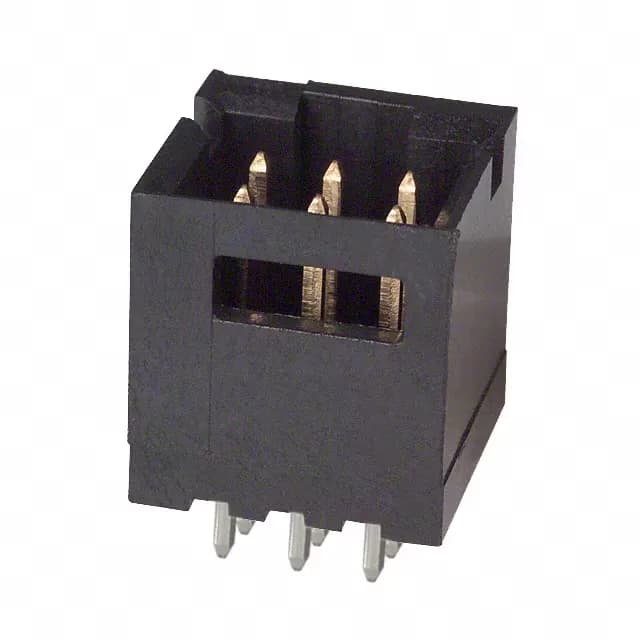

TE Connectivity AMPMODU Mod II shrouded header, 5-102618-1, 6 positions, 2 rows, 0.100" (2.54 mm) pitch, through-hole solder, gold mating finish, 3 A per contact, detent lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 5-102618-1: The tin-plated solder tails (100.0 µinch) are standard for wave-solder processes.
This header mates with AMPMODU Mod II receptacles that accept 0.025" square posts — the standard interface for the series. The 6 positions are fully loaded (all positions populated), so the BOM line matches the circuit count directly — no unpopulated positions to account for in the layout.
The 5-102618-1 is a 6-position, 2-row header with all positions loaded.
