Board footprint and mating pitch
The 5-102618-4: The shrouded 4-wall design with detent lock prevents mis-mating and holds the connection under vibration, a step up from unshrouded breakaway headers in environments where the cable gets tugged.

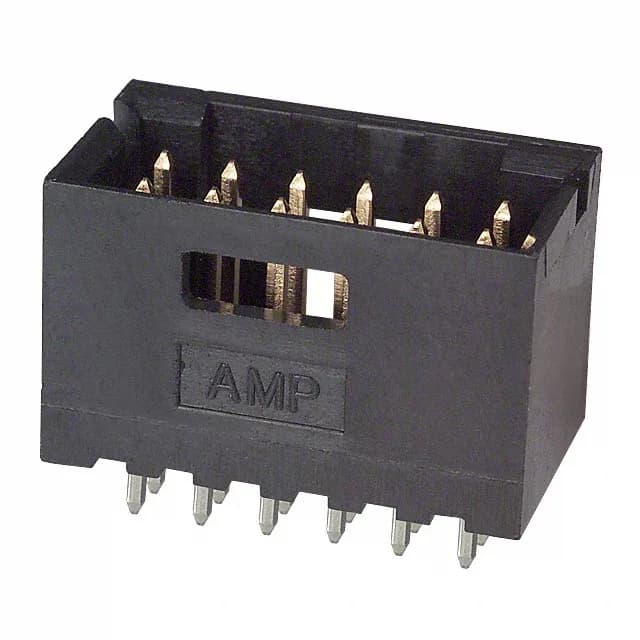

5-102618-4 TE AMPMODU Mod II Header 12 Pos 2.54mm
MPN5-102618-4
Active
TE Connectivity AMP Connectors AMPMODU Mod II, Header, 12 Positions, 0.100" (2.54mm) Pitch, Shrouded - 4 Wall, Through Hole, Gold Mating Finish, Detent Lock, Tray
$3.6400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the pitch of 5-102618-4?
The mating pitch is 0.100" (2.54mm), and the row spacing is also 0.100" (2.54mm). This is the standard 0.100-inch grid used by most AMPMODU Mod II headers and matching receptacles.
Is 5-102618-4 a shrouded header?
Yes, it is a shrouded - 4 wall header.
