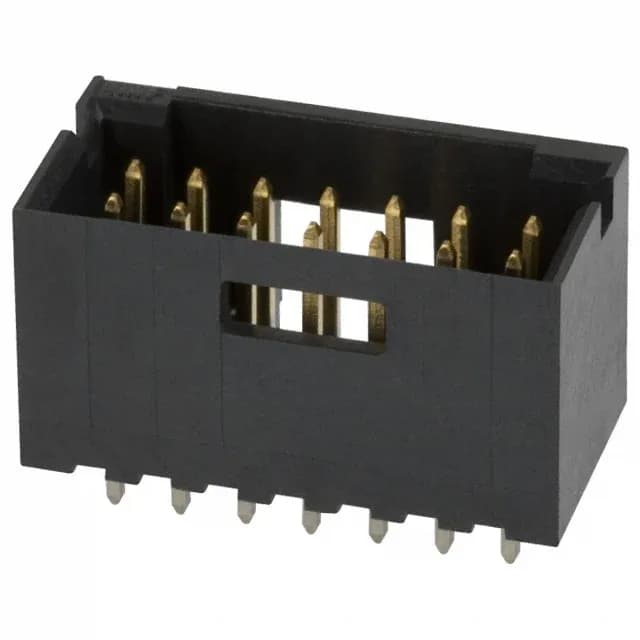

What this 14-position header connects to and where it mounts
Pitch, current, and temperature — what the numbers mean for your board
The 0.100" row spacing matches the pitch, giving a symmetrical 2.54mm grid that aligns with standard perfboard and prototyping layouts. Operating from -65°C to 105°C, this header can be used in equipment inside an enclosure where the ambient temperature stays below the 105°C ceiling, including industrial control panels and telecom racks. The 0.125" (3.18mm) post length gives enough solder tail for standard 1.6mm PCBs, while the 0.318" (8.08mm) mating pin length provides a secure wipe inside the receptacle contact.
The through-hole solder termination is compatible with wave or hand soldering. The 0.440" (11.18mm) insulation height provides clearance for the receptacle body above the board.
