TE Connectivity AMP Connectors 5-102618-9 — Pin Headers

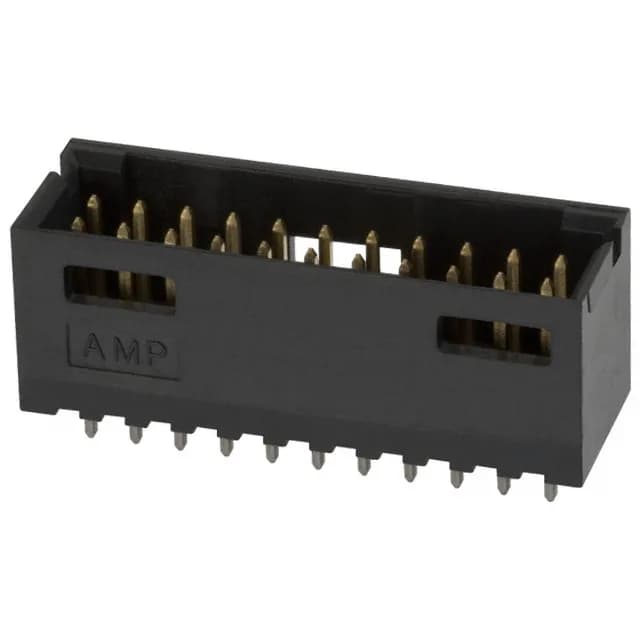

5-102618-9 TE Connectivity AMP Connectors Header – 22 Pos

MPN5-102618-9
Active

TE Connectivity AMPMODU Mod II header, 22 positions, 2 rows, 0.100" (2.54 mm) pitch, shrouded, through-hole solder, gold mating contacts, 3 A rating, UL94 V-0.

$6.5900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-102618-9 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.440\" (11.18mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-102618-9 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions22
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.533\" (13.55mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating15.0µin (0.38µm)

Product details

The insulation height of 0.440" (11.18 mm) and overall contact length of 0.533" (13.55 mm) define the z-height budget above the board.

Gold Mating Contacts for Repeated Mate Cycles

The square male pin contacts mate with standard AMPMODU Mod II receptacles or crimp-socket housings.

Board-to-Board or Cable Interconnect

The connector style is listed as Board to Board or Cable, meaning it can mate with a board-mounted receptacle or a free-hanging cable receptacle. The through-hole solder termination suits standard PCB assembly processes.

Frequently asked questions

Is 5-102618-9 RoHS compliant?

Yes, 5-102618-9 is ROHS3 compliant per the manufacturer's listing.

What is the mating half for 5-102618-9?

This shrouded header mates with standard AMPMODU Mod II receptacles or crimp-socket housings that accept 0.025" square pins at 2.54 mm pitch. Confirm the receptacle part number against your assembly requirements.
