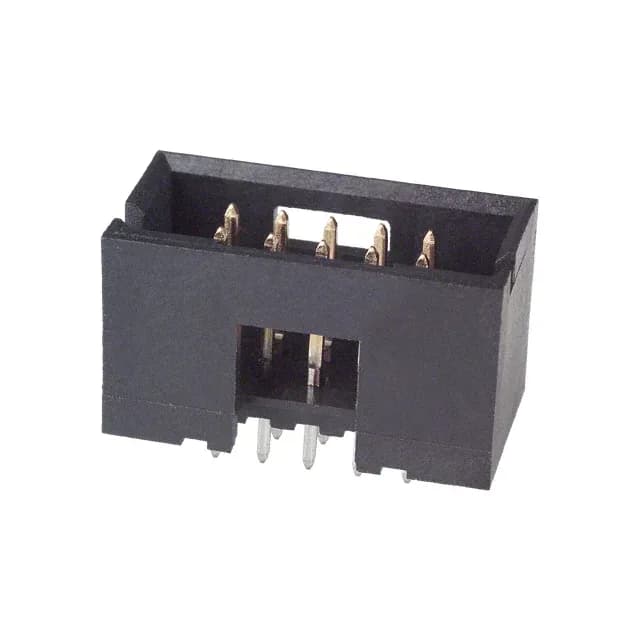

TE Connectivity AMPMODU Mod II, Header, 10 Positions, 2.54mm Pitch, Through Hole, Shrouded - 4 Wall, Gold Mating Finish, 3A, -65°C to 105°C, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
Contact finish on the mating side is gold at 15.0 µin (0.38 µm) thickness, while the post side uses tin at 100.0 µin (2.54 µm). This dual finish gives corrosion resistance at the mating interface and solderability at the board level.
The 5-102619-3 mates with AMPMODU Mod II receptacles that have a 0.100-inch pitch, dual-row layout, and accept male pins. Typical mating halves include TE part numbers like 5-102617-3 (10-position receptacle) or other AMPMODU Mod II socket housings with the same pitch and row count.
