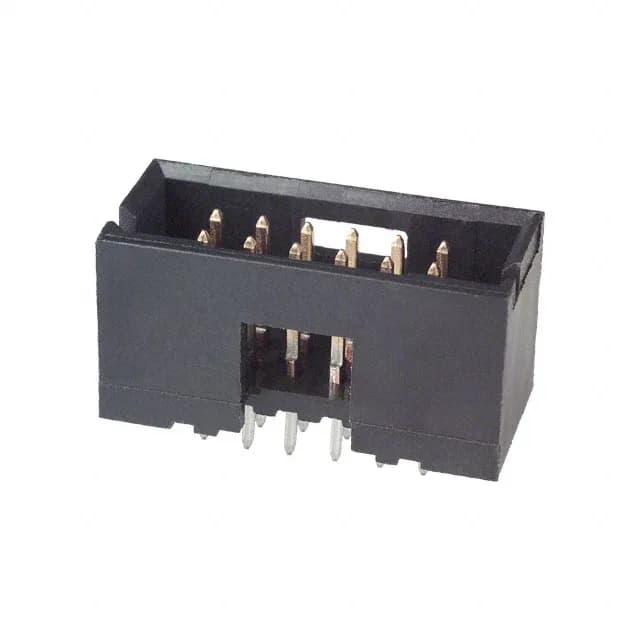

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 12 Positions, 0.100" (2.54 mm) Pitch, Through Hole, Solder, Gold Mating Finish, 3 A, Black Thermoplastic Housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
This header mates with AMPMODU Mod II receptacles that accept 0.025" square posts, such as the 5-102619-4's own male pins. The detent lock on the shroud engages with the mating housing's latch pocket.
The mating pitch is 0.100" (2.54 mm), and the row spacing is also 0.100" (2.54 mm), giving a standard dual-row grid.
Yes, the part is RoHS compliant per the manufacturer's listing.
