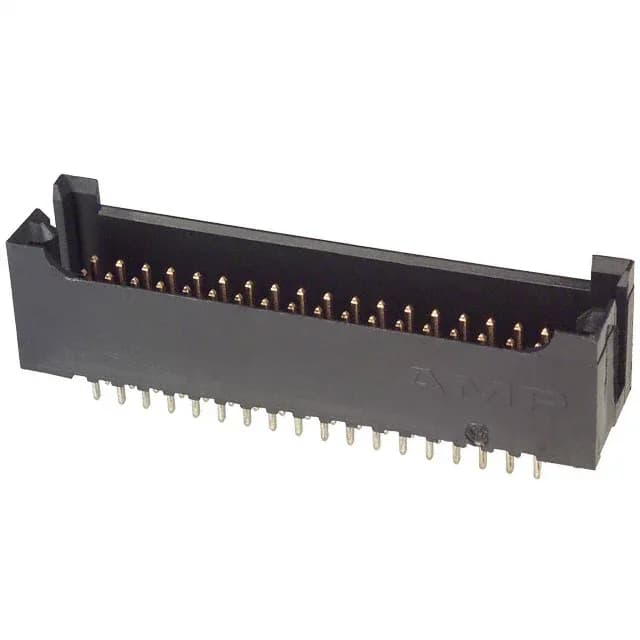

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 36 Positions, 0.100" (2.54mm) Pitch, 2 A, 250 VAC, Through Hole, Solder, Shrouded - 4 Wall, Black, UL94 V-0
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 250VAC |
| Current rating | 2A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.550\" (13.97mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.180\" (4.57mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The tin finish limits it to about 50 mating cycles, so for applications requiring repeated disconnect/reconnect, the 5-102692-3's 30 µinch gold is the better choice.
Termination is through-hole solder. The 0.180" (4.57mm) post length is long enough for standard 1.6mm PCBs with room for a solder fillet on the bottom side.
The 5-102692-3 is an active part sourced through independent distribution.
The 4-wall shroud protects the pins from bending during handling and guides the mating socket into alignment. An unshrouded header leaves the pins exposed, which is fine for low-density or single-row use but risks damage in a 36-position dual-row layout.
It mates with any AMPMODU Mod II female socket or IDC receptacle that has 36 positions in a dual-row, 0.100" pitch arrangement. The push-pull fastening means no latch — the gold-on-gold contact friction provides retention.
