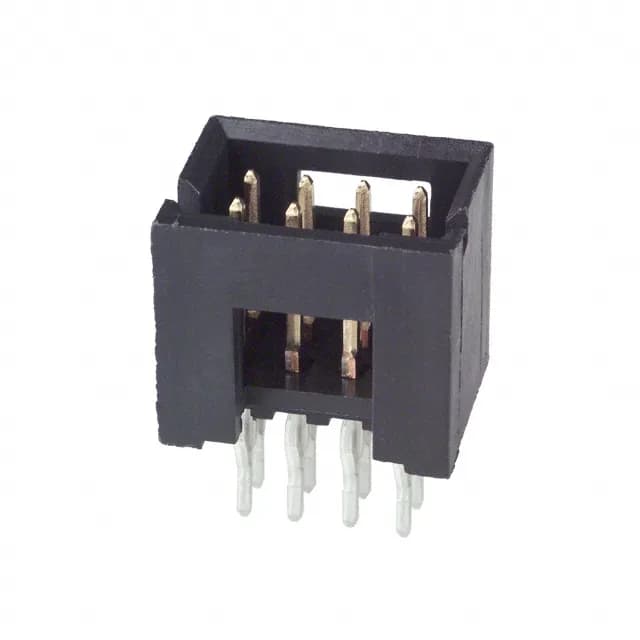

TE Connectivity AMP Connectors AMPMODU Mod II, 5-102699-3, Header, 8 Positions, 2.54mm Pitch, Shrouded - 4 Wall, Detent Lock, Press-Fit Solder Termination, Gold Mating, 3A, Through Hole, Tray
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.250\" (6.35mm) |
| Overall contact length | 0.660\" (16.76mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-102699-3: The detent lock provides positive retention against vibration or cable tug, while the 4-wall shrouding protects pins during handling and prevents mis-mating.
Termination is press-fit (with solder option), meaning the header can be inserted into plated through-holes without soldering for a gas-tight joint — a common requirement in backplane or high-reliability assemblies where rework is difficult.
Yes, the fastening type is Detent Lock, providing a positive latching mechanism that resists vibration and accidental disconnection.
