TE Connectivity AMP Connectors 5-102699-4 — Pin Headers

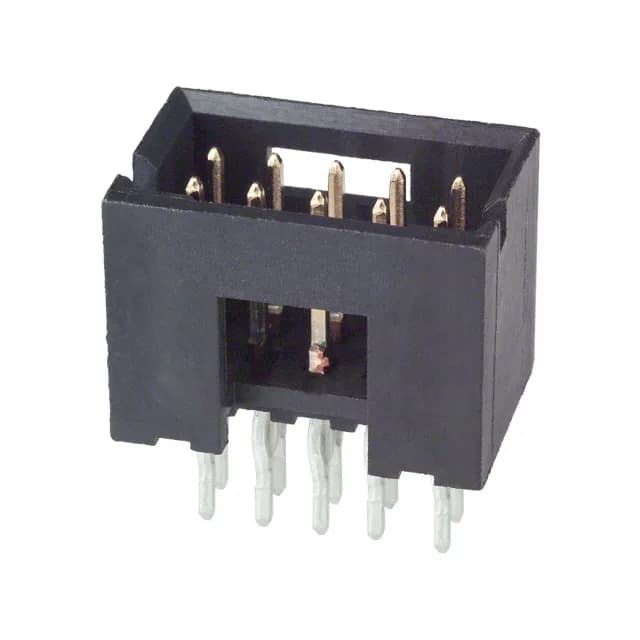

5-102699-4 TE Connectivity AMPMODU Mod II Header 10POS

MPN5-102699-4
Active

TE Connectivity AMP Connectors AMPMODU Mod II, Header, 10 Positions, 0.100" (2.54mm) Pitch, Through Hole, Press-Fit/Solder, Gold Mating, Tin Post, Shrouded - 4 Wall, Detent Lock, UL94 V-0

$7.8700Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-102699-4 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.440\" (11.18mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-102699-4 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.250\" (6.35mm)
Overall contact length0.660\" (16.76mm)
Contact finish - matingGold
Contact length - mating0.320\" (8.13mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

5-102699-4 is a 10-position, 2-row vertical header from the AMPMODU Mod II series, on 0.100" (2.54mm) pitch — the standard footprint for breadboard-friendly prototyping and production wiring. Rated 3A per contact across a -55°C to 105°C operating range, with a UL94 V-0 thermoplastic housing — this header handles the thermal and flame-rating demands of industrial control cabinets and test equipment.

Press-Fit and Solder Termination — Two Assembly Paths

The press-fit option (alongside solder) means you can install this header without reflow — useful for prototype rework or when you need to replace a damaged header on an existing board without lifting pads.

Frequently asked questions

Where can I buy 5-102699-4 and how is it quoted?

5-102699-4 is an active TE Connectivity part, sourced to order against your BOM quantity. Submit an RFQ for current pricing and lead time — no stock-holding claim on this page.

Is 5-102699-4 RoHS compliant?

Yes, 5-102699-4 is RoHS compliant per the manufacturer.

What is the mating connector for 5-102699-4?

This shrouded header mates with AMPMODU Mod II receptacles (socket housings) on the same 0.100" pitch. Confirm the mating half position count and keying before ordering.
