The 5-102699-7: This is a 16-position, dual-row, shrouded header on 2.54mm pitch — the standard 0.100-inch grid that matches the AMPMODU Mod II receptacle family. The 4-wall shroud guides the mating connector and the detent lock holds it against casual vibration. The post finish is tin (100.0µin), which solders cleanly into the through-hole board.

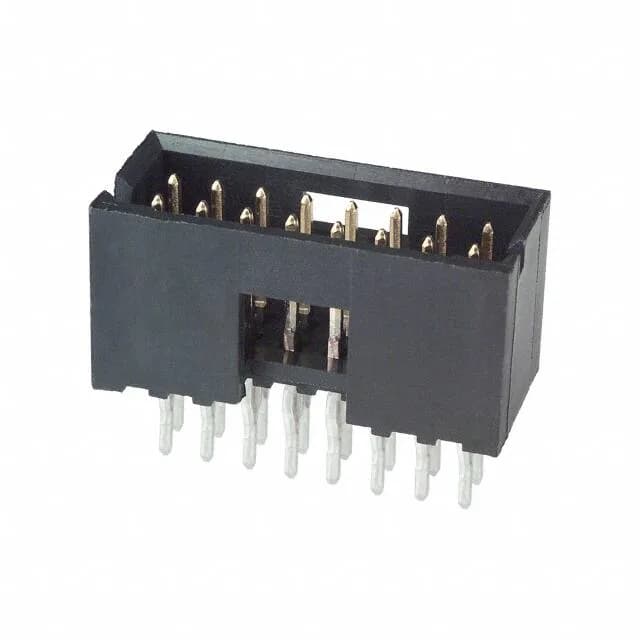

5-102699-7 TE Connectivity AMPMODU Mod II Header, 16 Pos
MPN5-102699-7
Active
TE Connectivity AMP Connectors AMPMODU Mod II, Header, 16 Positions, 2.54mm Pitch, Through Hole, Gold Mating Contact, 3A, Tray
$10.5400Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 16 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.250\" (6.35mm) |
| Overall contact length | 0.660\" (16.76mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.320\" (8.13mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Is 5-102699-7 RoHS compliant?
Yes, it is RoHS compliant.
How can I order 5-102699-7 or check stock?
Availability and current pricing confirmed at quote time.
