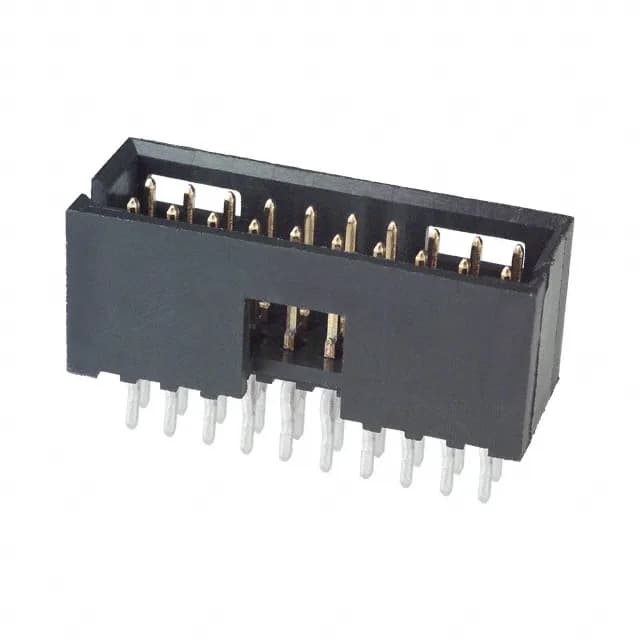

5-102699-9 TE Connectivity AMPMODU Mod II Header, 20 Pos

MPN5-102699-9
Active

TE Connectivity AMPMODU Mod II, 5-102699-9, shrouded header, 20 positions, 2 rows, 0.100" (2.54mm) pitch, gold mating finish, press-fit/solder termination, through hole, detent lock, UL94 V-0, -55°C to 105°C, 3A per contact.

$14.7500Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-102699-9 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-55°C ~ 105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.440\" (11.18mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-102699-9 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions20
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.250\" (6.35mm)
Overall contact length0.660\" (16.76mm)
Contact finish - matingGold
Contact length - mating0.320\" (8.13mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 5-102699-9 is a TE Connectivity AMPMODU Mod II shrouded header with 20 positions arranged in two rows at 0.100" (2.54mm) pitch — a standard footprint that mates with matching IDC receptacles and ribbon cable connectors.

Termination flexibility: press-fit or solder

Press-fit is preferred for solderless backplane assembly where rework and high-reliability are required; solder termination is the conventional through-hole method for standard wave or hand-soldering processes. The contact length — 0.320" (8.13mm) mating side and 0.250" (6.35mm) post — accommodates standard PCB thicknesses and mating connectors without bottoming out.

Gold mating finish for repeated mating cycles

Frequently asked questions

What is the pitch and position count of 5-102699-9?

The header has 20 positions in two rows at 0.100" (2.54mm) pitch, with the same row spacing. All positions are loaded.

Is 5-102699-9 RoHS compliant?

Yes, the part is RoHS compliant per the manufacturer's listing.
