TE Connectivity AMP Connectors AMPMODU Mod II, Header, 7 Positions, 0.100" (2.54 mm) Pitch, Shrouded - 4 Wall, Through Hole, Solder Termination, Tin Plating, 3 A, Active
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |

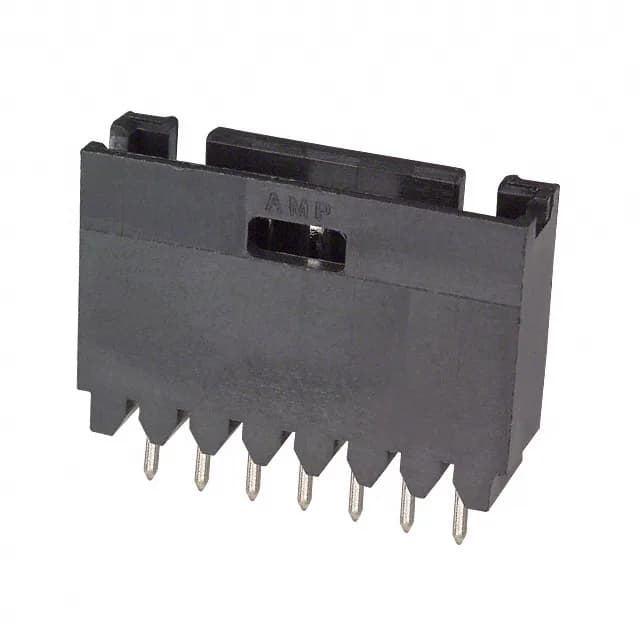

The 5-103080-5: The 4-wall shroud protects the male pins from damage during handling and prevents mis-mating with non-compatible receptacles.
The header mounts through-hole and is soldered in place. The push-pull fastening type means the connector relies on friction fit with the mating receptacle — no locking latch, so it is best suited for environments without continuous vibration.
The pitch is 0.100" (2.54 mm).
Yes, it is a shrouded - 4 wall header, which protects the pins and guides the mating receptacle.
It has 7 positions in a single row, all loaded.
