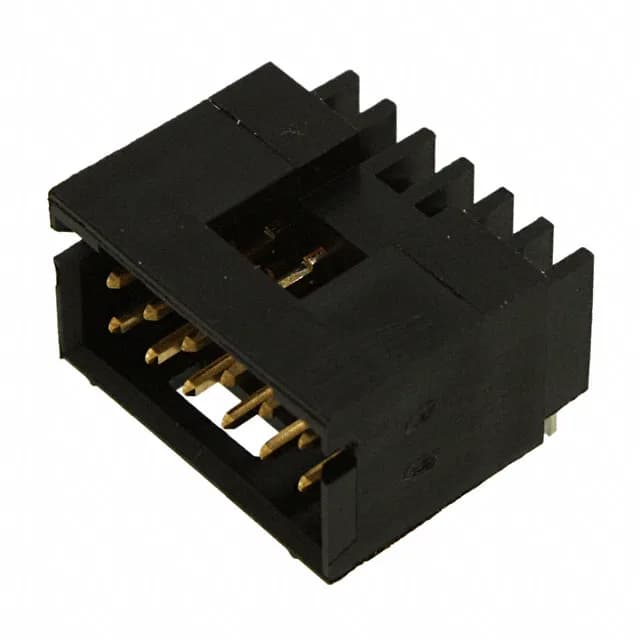

5-103166-4 TE Connectivity AMPMODU Mod II Header, 12 Pos

MPN5-103166-4
Active

TE Connectivity AMPMODU Mod II header, 5-103166-4, 12 positions, 0.100" (2.54mm) pitch, dual-row, right-angle, through-hole, gold-plated male pins, shrouded, detent lock, 3A, UL94 V-0.

$4.4200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5-103166-4 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.400\" (10.16mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-103166-4 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions12
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.135\" (3.43mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-fit and routing — 0.100-inch pitch, dual-row, right-angle

Rated 3 A per contact at the listed temperature range (-65°C to 105°C), the current ceiling is set by the contact cross-section and the housing's thermal limits — for a 12-position header carrying mixed signal and low-power circuits, the 3 A per pin is adequate for most logic-level and sensor loads.

Mating and locking — shrouded, detent lock, AMPMODU Mod II family

The insulation height of 0.400" (10.16mm) and mating pin length of 0.318" (8.08mm) set the engagement depth — the receptacle must have a matching cavity depth to seat fully.

Frequently asked questions

What is the mating connector for 5-103166-4?

This header mates with standard AMPMODU Mod II dual-row receptacles on 0.100" (2.54mm) pitch. The detent lock on the shroud engages with the receptacle latch. Confirm the receptacle part number against your BOM before ordering.
