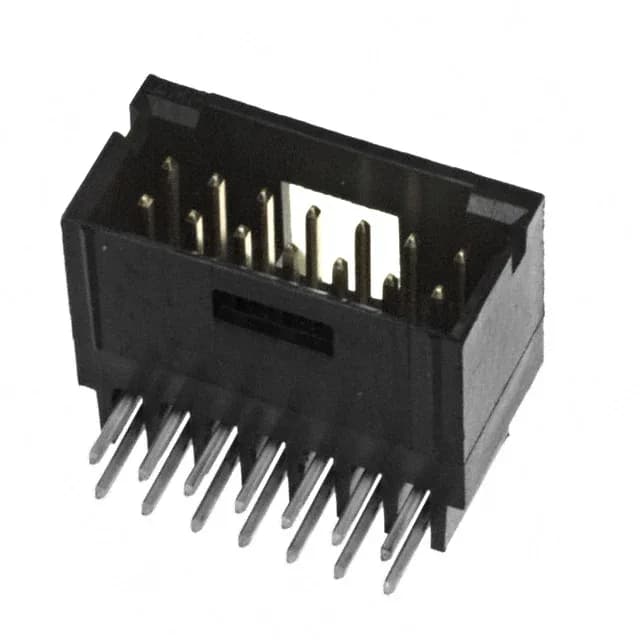

TE Connectivity AMP Connectors AMPMODU Mod II, 14-position dual-row header, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall, detent lock, gold-plated male pins, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.400\" (10.16mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.135\" (3.43mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-103166-5: The tin-plated solder tail (100 µinch) matches standard wave-solder wetting. For a 14-position header carrying full load, the total current budget is 42 A distributed across the two rows.
The 5-103166-5 offers 14 positions at 0.100" pitch with gold mating contacts, making it a higher-density, higher-reliability choice for signal-level interconnects.
The mating pitch is 0.100" (2.54 mm), and the row spacing is also 0.100" (2.54 mm). This is the standard AMPMODU Mod II grid.
