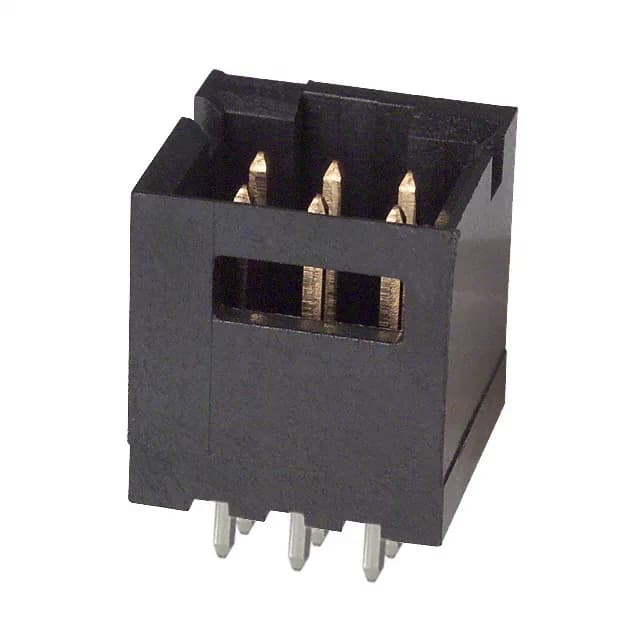

TE Connectivity AMP Connectors AMPMODU Mod II header, 5-103168-1, 6 positions, dual-row, 0.100" (2.54mm) pitch, male pin, through-hole, shrouded, gold-plated contacts, detent lock, rated 3A, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-103168-1: The full 4-wall shroud and detent lock keep the mating pair aligned and latched — a solid fit for board-to-board or cable applications where vibration or accidental pull-off is a concern.
The black insulator and square pin contacts are standard for the AMPMODU Mod II series.
No stock-holding claim — availability is verified per inquiry.
The pitch is 0.100" (2.54mm) on both the row and position spacing. It is a through-hole, vertical-mount header with solder tails.
