Shroud and Locking for Vibration Resistance
The 5-103168-4: Insulation height of 0.440" (11.18 mm) leaves clearance for the mating receptacle's latch and cable exit.
ROHS3 compliant, meeting current EU substance restrictions.

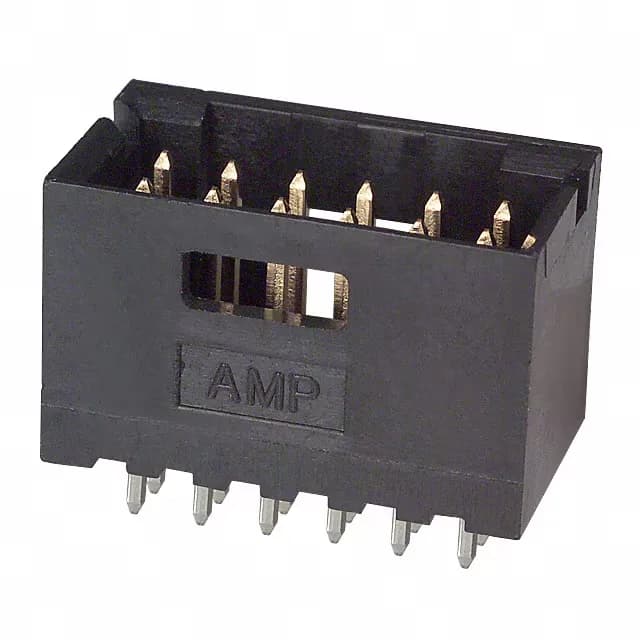

5-103168-4 TE Connectivity AMPMODU Mod II Header, 12 Pos
MPN5-103168-4
Active
TE Connectivity AMPMODU Mod II, 12-position shrouded header, 0.100" (2.54 mm) pitch, through-hole solder termination, gold mating finish, detent lock, black UL94 V-0 housing.
$4.3200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the mating connector for 5-103168-4?
This is a shrouded male header; it mates with any AMPMODU Mod II 0.100" pitch receptacle housing that accepts the 12-position, dual-row layout. Confirm the mating half's circuit count and row spacing match the 0.100" row spacing before ordering.
How can I order 5-103168-4 or check stock?
Availability and current pricing confirmed at quote time.
