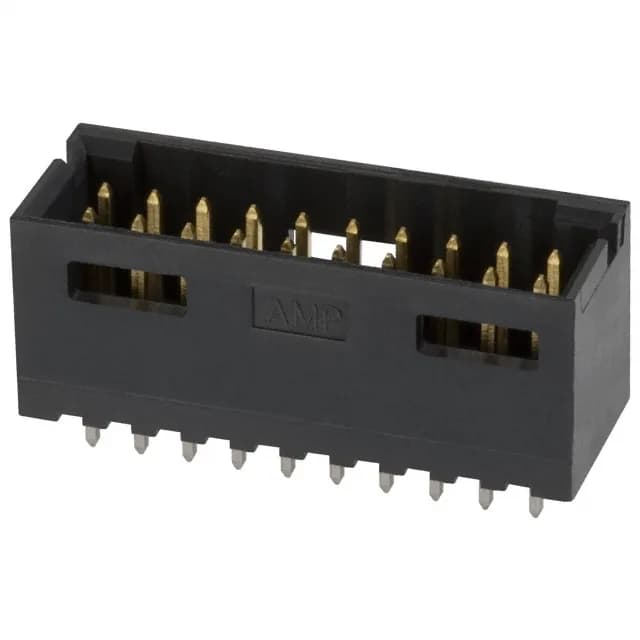

TE Connectivity AMPMODU Mod II, Header, 20 Positions, 2.54mm Pitch, Through Hole, Shrouded - 4 Wall, Gold Mating Finish, 3A, Tray
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.440\" (11.18mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.533\" (13.55mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-103168-8: A shrouded 4-wall housing with a detent lock provides positive retention against vibration without requiring a separate latch or screw.
Each contact is rated 3 A. The operating temperature range is -65°C to 105°C.
The mating pitch is 0.100 inch (2.54 mm), with the same row spacing. This matches standard 0.100-inch grid layouts.
Yes, the header has a shrouded 4-wall housing that protects the pins during handling and guides the mating connector into alignment.
