TE Connectivity AMP Connectors 5-103169-2 — Pin Headers

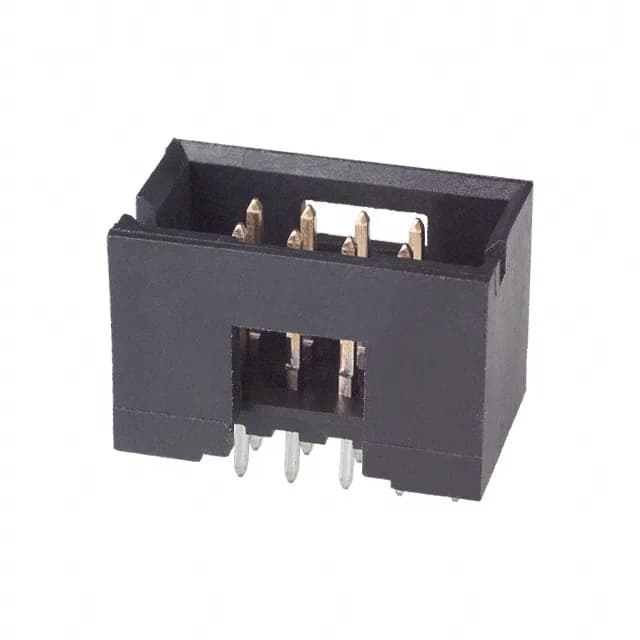

5-103169-2 TE AMPMODU Mod II Header, 8 Pos, 2.54mm, Gold

MPN5-103169-2
Active

TE Connectivity AMPMODU Mod II, Header, 8 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Detent Lock, Gold Mating Finish, 3A, -65°C ~ 105°C, Tray

$3.0900Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

5-103169-2 key specifications
ParameterValue
SeriesAMPMODU Mod II
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Current rating3A
Operating temperature-65°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.440\" (11.18mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

5-103169-2 additional specifications
ParameterValue
StyleBoard to Board or Cable
PackageTray
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions8
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Overall contact length0.533\" (13.55mm)
Contact finish - matingGold
Contact length - mating0.318\" (8.08mm)
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 5-103169-2 is an 8-position, dual-row vertical header from the AMPMODU Mod II series, on a 0.100" (2.54mm) pitch. It is a shrouded - 4 wall design with a detent lock, intended for board-to-board or cable mating. The mating interface is gold-plated at 30.0µin (0.76µm) over phosphor bronze contacts, rated for 3A per circuit.

Pitch and Footprint Match for the BOM Line

The 0.100" (2.54mm) pitch and 0.100" (2.54mm) row spacing define the PCB footprint. The overall contact length is 0.533" (13.55mm), with a mating length of 0.318" (8.08mm) and a post length of 0.125" (3.18mm).

Frequently asked questions

What is the pitch of 5-103169-2?

The pitch is 0.100" (2.54mm) on both the mating interface and the row spacing.

Is 5-103169-2 shrouded?

Yes, it is a shrouded - 4 wall design, which protects the pins and guides the mating connector.

What is the mating connector for 5-103169-2?

This header mates with AMPMODU Mod II receptacles and IDC sockets on the same 0.100" pitch. Confirm the position count and contact arrangement with the mating half datasheet.

Where can I buy 5-103169-2?

Sourced to order against your BOM quantity — availability and current pricing are confirmed at quote time.
