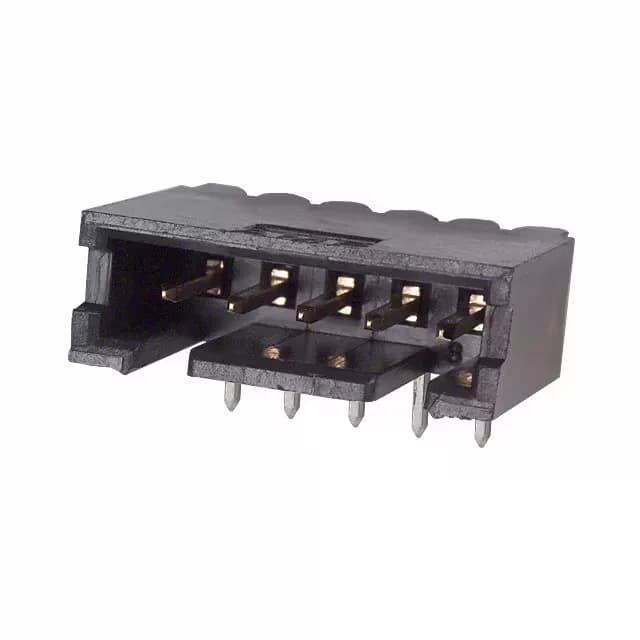

TE Connectivity AMPMODU Mod II header, 5-103361-3, 5 positions, 0.100" (2.54 mm) pitch, through-hole right-angle, male pin, gold-plated contacts, 3 A, UL94 V-0, RoHS
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 0.214" (5.44 mm) insulation height above board and 0.110" (2.79 mm) solder post length define the keep-out zone and hole pattern — confirm the footprint against the board stack-up before layout.
RoHS compliant per current directive.
All positions are loaded.
Yes, it is RoHS compliant per the current directive.
