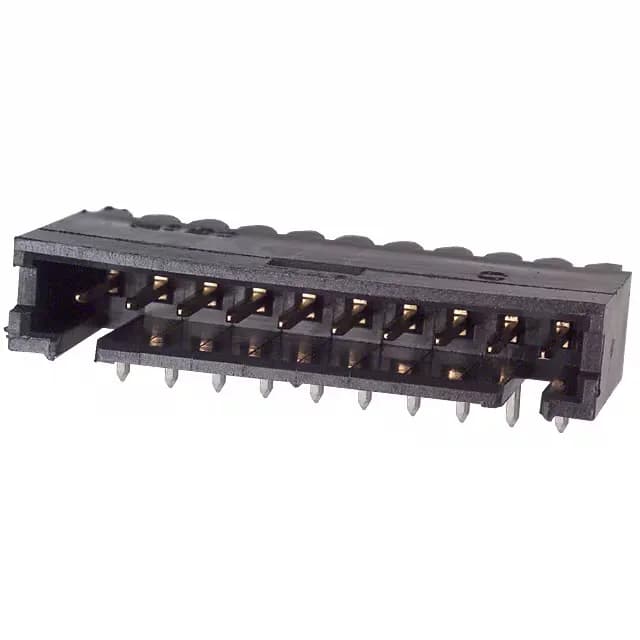

TE Connectivity AMP Connectors AMPMODU Mod II header, 10 positions, 0.100" (2.54mm) pitch, shrouded 4-wall, right-angle through-hole, gold mating contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.214\" (5.44mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 5-103361-8: It mates with board-to-board or cable receptacles at a 0.100-inch pitch — the standard footprint for 2.54 mm grid layouts.
The single-row layout with all 10 positions loaded means no unpopulated holes on the PCB.
ROHS3 compliant. The thermoplastic housing is rated UL94 V-0.
0.100 inches (2.54 mm) — the standard AMPMODU Mod II pitch. This matches the mating receptacle footprint.
Yes, ROHS3 compliant.
