TE Connectivity AMP Connectors AMPMODU Mod II header, 5-103414-2, 4-position single-row, 0.100" (2.54mm) pitch, through-hole solder termination, shrouded 4-wall, gold mating finish, 3A rating.
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |

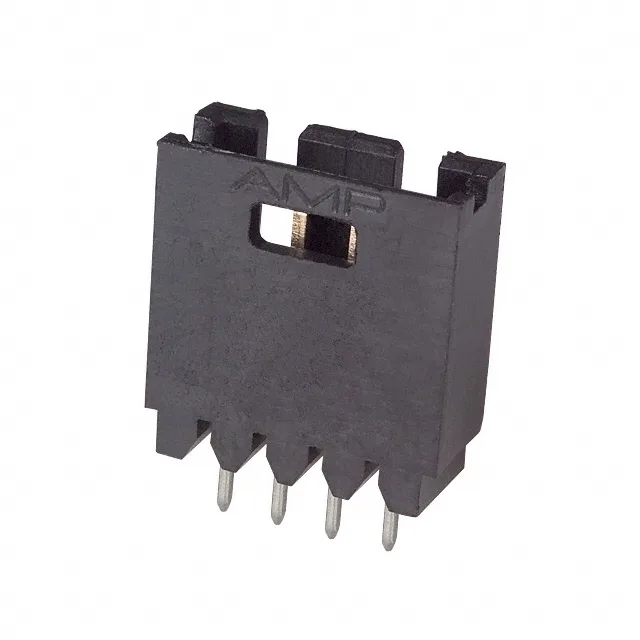

The 5-103414-2: It is a shrouded 4-wall design, meaning the plastic housing fully encloses the square pins on all sides, protecting them from damage during handling and ensuring alignment when mating with a receptacle. The tin-plated post solders cleanly into a standard 0.100" grid PCB footprint.
These dimensions determine the PCB standoff and the depth of engagement with the mating receptacle.
The 5-103414-2 is sourced to order through our distribution network. Submit an RFQ for current availability and pricing—no stock-holding claim is made here.
The pitch is 0.100" (2.54mm), standard for the AMPMODU Mod II series. This sets the PCB footprint and the mating receptacle spacing.
The shrouded 4-wall design ensures alignment with the receptacle housing.
Yes, the 5-103414-2 is RoHS compliant.
