What this 5-position shrouded header is for
The 5-103414-3: It mates with matching AMPMODU Mod II receptacles for board-to-board or cable-to-board connections.

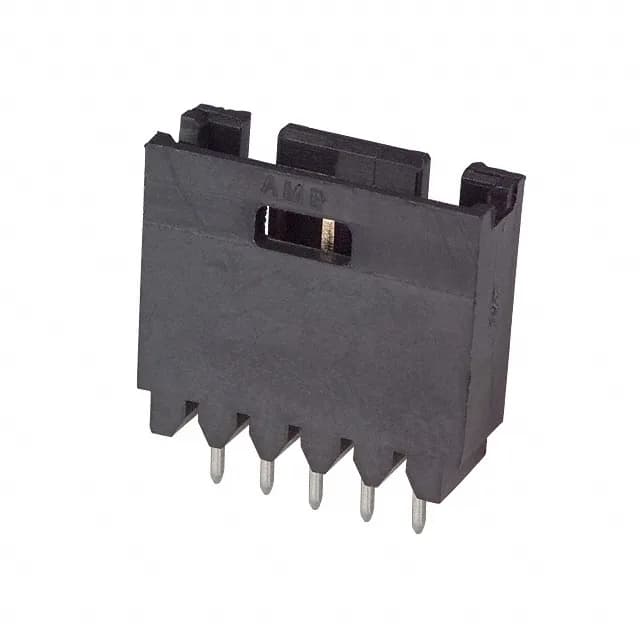

5-103414-3 TE Connectivity AMP Connectors Pin Headers
MPN5-103414-3
Active
TE Connectivity AMP Connectors, AMPMODU Mod II, Header, 5 Positions, 0.100" (2.54mm) Pitch, Through Hole, Solder, Shrouded - 4 Wall, Gold Mating, Tin Post, 3A, -65°C ~ 105°C, UL94 V-0, Tube
$2.6200Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.549\" (13.94mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 5 |
| Contact finish - post | Tin |
| Contact length - post | 0.130\" (3.30mm) |
| Overall contact length | 0.589\" (14.96mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.240\" (6.10mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Is 5-103414-3 RoHS compliant?
Yes, it is listed as RoHS Compliant.
What is the difference between 5-103414-3 and 5-103414-1?
Both are AMPMODU Mod II 5-position shrouded headers. The difference is in contact finish thickness or packaging — check the specific datasheet for each variant. The base product number 103414 is shared.
