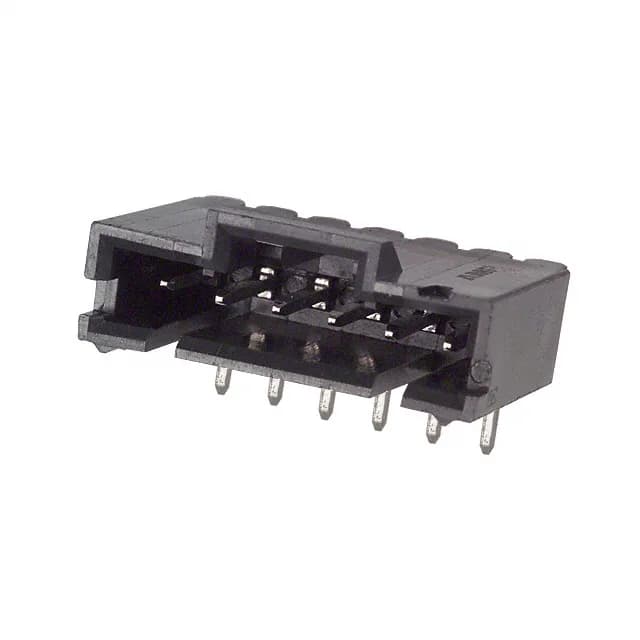

6-position, 2.54mm pitch, right-angle shrouded header
The 5-103634-5: This is a 6-circuit, single-row, shrouded header from the AMPMODU MTE series, designed for board-to-board or cable-to-board connections. The 0.100" (2.54mm) pitch and right-angle orientation suit it for edge-mounting on a PCB where the mating axis runs parallel to the board. The four-wall shroud and keying slot protect the tin-plated square pins from mis-mating and mechanical damage during assembly or service.
Rated 3A with tin plating — signal duty, not power
Each contact is rated 3A. The tin finish on both mating and post sides keeps cost down but limits mating cycles compared to gold — expect reliable performance in low-cycle, signal-level applications. The 100.0µin tin plating on the mating surface is thick enough for repeated insertions in a production environment, but if your design needs frequent field swaps, consider a gold-plated sibling in the same series.
Active production, sourced per RFQ
Availability and current pricing are confirmed at quote time against your BOM quantity. No stock-holding claim — sourced per RFQ.
